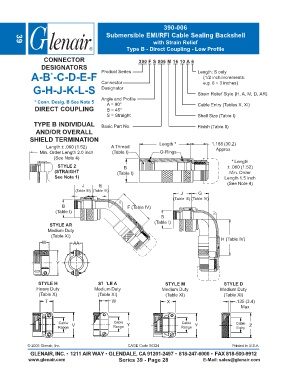

Page 290 - Circular Connector Backshells and Accessories

390-006
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type B - Direct Coupling - Low Profile
CONNECTOR 390 F S 006 M 16 10 A 6
DESIGNATORS
A-B -C-D-E-F Product Series Length: S only
*
(1/2 inch increments:
Connector
e.g. 6 = 3 inches)
G-H-J-K-L-S Designator Strain Relief Style (H, A, M, D, AR)
Angle and Profile
* Conn. Desig. B See Note 5 A = 90° Cable Entry (Tables X, XI)
DIRECT COUPLING B = 45°
S = Straight Shell Size (Table I)
TYPE B INDIVIDUAL Basic Part No. Finish (Table II)
AND/OR OVERALL
SHIELD TERMINATION

Length ± .060 (1.52) A Thread Length * 1.188 (30.2)
Approx.
Min. Order Length 2.0 Inch (Table I) O-Rings
(See Note 4)
* Length
STYLE 2 B ± .060 (1.52)
(STRAIGHT (Table I) Min. Order
See Note 1) Length 1.5 Inch

J E (See Note 4)
(Table III) (Table IV)
J G
(Table III) (Table IV)
B F (Table IV)
(Table I)
B
(Table I)
STYLE AR
Medium Duty
(Table XI)
W AA H (Table IV)

Y

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable
Range Range Range Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 28 E-Mail: sales@glenair.com
