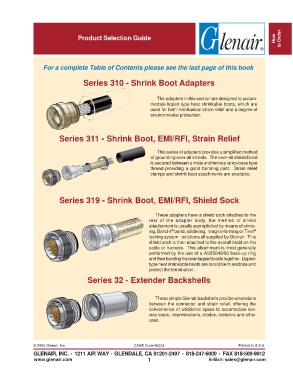

Page 3 - Circular Connector Backshells and Accessories

Product Selection Guide How to Order

For a complete Table of Contents please see the last page of this book

Series 310 - Shrink Boot Adapters

The adapters in this section are designed to accom-
modate lipped-type heat shrinkable boots, which are
used for both mechanical strain relief and a degree of
environmental protection.

Series 311 - Shrink Boot, EMI/RFI, Strain Relief

This series of adapters provides a simplified method
of grounding over-all shields. The over-all shield/braid
is secured between a male and female lamp-base type
thread providing a good bonding joint. Strain relief
clamps and shrink boot attachments are available.

Series 319 - Shrink Boot, EMI/RFI, Shield Sock

These adapters have a shield sock attached to the
rear of the adapter body, the method of shield
attachement is usually acomplished by means of crimp-
ing, Band-it band, soldering, magna-forming or Tinel ®
®
locking system - solutions all supplied by Glenair. This
shield sock is then attached to the overall braid on the
cable or harness. This attachment is most generally
performed by the use of a AS85049/93 back-up ring
and then banding the over-lapped braids together. Lipped-
type heat shrinkable boots are available to enclose and
protect the termination.
Series 32 - Extender Backshells

These simple Glenair backshells provide extensions
between the connector and strain relief, offering the
convenience of additional space to accomodate ser-
vice loops, reterminations, diodes, resistors and other
uses.
