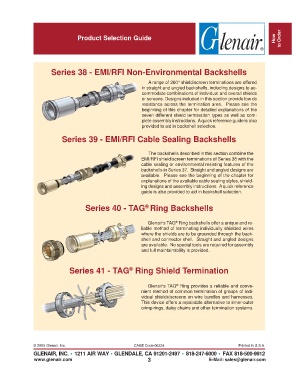

Product Selection Guide How to Order

Series 38 - EMI/RFI Non-Environmental Backshells

A range of 360° shield/screen terminations are offered
in straight and angled backshells, including designs to ac-
commodate combinations of individual and overall shields
or screens. Designs included in this section provide low dc
resistance across the termination area. Please see the
beginning of this chapter for detailed explanations of the
seven different shield termination types as well as com-
plete assembly instructions. A quick reference guide is also
provided to aid in backshell selection.

Series 39 - EMI/RFI Cable Sealing Backshells

The backshells described in this section combine the
EMI/RFI shield/screen terminations of Series 38 with the
cable sealing or environmental resisting features of the
backshells in Series 37. Straight and angled designs are
available. Please see the beginning of the chapter for
explanations of the available cable sealing styles, shield-
ing designs and assembly instructions. A quick reference
guide is also provided to aid in backshell selection.

Series 40 - TAG Ring Backshells
®

Glenair's TAG Ring backshells offer a unique and re-
®
liable method of terminating individually shielded wires
where the shields are to be grounded through the back-
shell and connector shell. Straight and angled designs
are available. No special tools are required for assembly
and full maintainability is provided.

Series 41 - TAG Ring Shield Termination
®

Glenair's TAG Ring provides a reliable and conve-
®
nient method of common termination of groups of indi-
vidual shields/screens on wire bundles and harnesses.
This device offers a repairable alternative to inner-outer
crimp rings, daisy chains and other termination systems.
