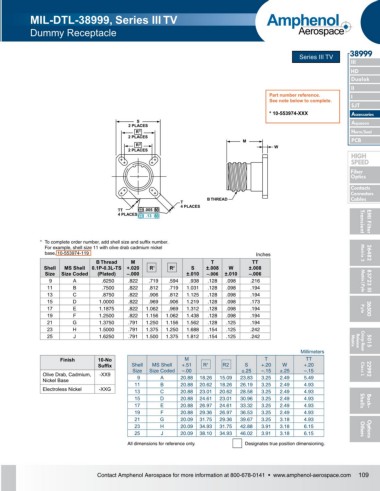

Page 110 - Amphenol_Circular_12_C

MIL-DTL-38999, Series III TV Amphenol

Dummy Receptacle Aerospace

38999
Series III TV
III
HD
Dualok
II
Part number reference. I
See note below to complete.
SJT
* 10-553974-XXX Accessories
S Aquacon
2 PLACES
R 1 Herm/Seal
2 PLACES
M PCB
R 2 W
2 PLACES
HIgH
SPeeD
Fiber
Optics
Contacts
Connectors
B THREAD Cables
T
4 PLACES
TT .005 M
4 PLACES .13 M Transient eMI Filter

* To complete order number, add shell size and suffix number.
For example, shell size 11 with olive drab cadmium nickel
base, 10-553974-119 Inches Matrix 2 26482
B Thread M T TT
Shell MS Shell 0.1P-0.3L-TS +.020 R 1 R 2 S ±.008 W ±.008
Size Size Coded (Plated) –.000 ±.010 –.006 ±.010 –.006
9 A .6250 .822 .719 .594 .938 .128 .098 .216 Matrix|Pyle 83723 III
11 B .7500 .822 .812 .719 1.031 .128 .098 .194
13 C .8750 .822 .906 .812 1.125 .128 .098 .194
15 D 1.0000 .822 .969 .906 1.219 .128 .098 .173
17 E 1.1875 .822 1.062 .969 1.312 .128 .098 .194 Pyle 26500
19 F 1.2500 .822 1.156 1.062 1.438 .128 .098 .194
21 G 1.3750 .791 1.250 1.156 1.562 .128 .125 .194
23 H 1.5000 .791 1.375 1.250 1.688 .154 .125 .242
25 J 1.6250 .791 1.500 1.375 1.812 .154 .125 .242 Matrix Release Crimp Rear 5015

Millimeters
Finish 10-No M T TT
Suffix Shell MS Shell +.51 R 1 R2 S +.20 W +.20
Size Size Coded –.00 ±.25 –.15 ±.25 –.15 Class L 22992
Olive Drab, Cadmium, -XX9
Nickel Base 9 A 20.88 18.26 15.09 23.83 3.25 2.49 5.49
11 B 20.88 20.62 18.26 26.19 3.25 2.49 4.93
Electroless Nickel -XXG 13 C 20.88 23.01 20.62 28.58 3.25 2.49 4.93
15 D 20.88 24.61 23.01 30.96 3.25 2.49 4.93 Shells
17 E 20.88 26.97 24.61 33.32 3.25 2.49 4.93 Back-
19 F 20.88 29.36 26.97 36.53 3.25 2.49 4.93
21 G 20.09 31.75 29.36 39.67 3.25 3.18 4.93
23 H 20.09 34.93 31.75 42.88 3.91 3.18 6.15 Others
25 J 20.09 38.10 34.93 46.02 3.91 3.18 6.15 Options
All dimensions for reference only. Designates true position dimensioning.

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com 109
