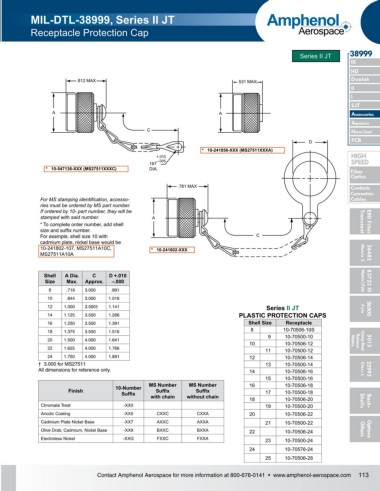

MIL-DTL-38999, Series II JT Amphenol

Receptacle Protection Cap Aerospace

Series II JT 38999
III
HD
Dualok
.812 MAX .531 MAX
II
I
SJT
A A Accessories
Aquacon
C Herm/Seal
D PCB
* 10-241856-XXX (MS27511XXXA)
+.010 HIgH
–.005 SPeeD
.167
* 10-547136-XXX (MS27511XXXC) DIA. Fiber
Optics
.781 MAX Contacts
Connectors
For MS stamping identification, accesso- Cables
ries must be ordered by MS part number.
If ordered by 10- part number, they will be
stamped with said number. A
* To complete order number, add shell Transient eMI Filter
size and suffix number.
For example, shell size 10 with C
cadmium plate, nickel base would be
10-241802-107, MS27511A10C, * 10-241802-XXX
MS27511A10A Matrix 2 26482

Shell A Dia. C D +.010
Size Max. Approx. –.000 Matrix|Pyle 83723 III
8 .719 3.000 .891
10 .844 3.000 1.016
12 1.000 3.500† 1.141 Series II JT Pyle 26500
14 1.125 3.500 1.266 PLASTIC PROTECTION CAPS
16 1.250 3.500 1.391 Shell Size Receptacle
18 1.375 3.500 1.516 8 10-70506-10S
9 10-70500-10
20 1.500 4.000 1.641 Matrix Release Crimp Rear 5015
10 10-70506-12
22 1.625 4.000 1.766
11 10-70500-12
24 1.750 4.000 1.891 12 10-70506-14
† 3.000 for MS27511 13 10-70500-14
All dimensions for reference only. 14 10-70506-16 Class L 22992
15 10-70500-16
MS Number MS Number 16 10-70506-18
10-Number
Finish Suffix Suffix 17 10-70500-18
Suffix
with chain without chain
18 10-70506-20 Shells
Chromate Treat -XX0 19 10-70500-20 Back-
Anodic Coating -XX5 CXXC CXXA 20 10-70506-22
Cadmium Plate Nickel Base -XX7 AXXC AXXA 21 10-70500-22
Olive Drab, Cadmium, Nickel Base -XX9 BXXC BXXA 22 10-70506-24 Others Options
Electroless Nickel -XXG FXXC FXXA 23 10-70500-24
24 10-70576-24
25 10-70506-28

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com 113
