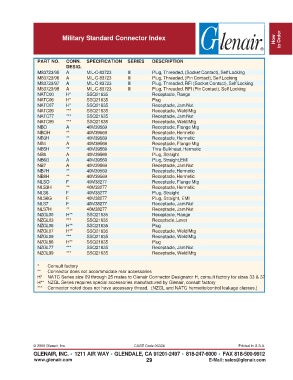

Military Standard Connector Index                                                        How  to Order




                 PART NO.    CONN.   SPECIFICATION    SERIES     DESCRIPTION
                             DESIG.
                 M83723/95   A       MIL-C-83723      III        Plug, Threaded, (Socket Contact), Self Locking
                 M83723/96   A       MIL-C-83723      III        Plug, Threaded, (Pin Contact), Self Locking
                 M83723/97   A       MIL-C-83723      III        Plug, Threaded, RFI (Socket Contact), Self Locking
                 M83723/98   A       MIL-C-83723      III        Plug, Threaded, RFI (Pin Contact), Self Locking
                 NATC00      H*      SSQ21635                    Receptacle, Flange
                 NATC06      H*      SSQ21635                    Plug
                 NATC07      H*      SSQ21635                    Receptacle, Jam Nut
                 NATC09      ***     SSQ21635                    Receptacle, Weld Mtg
                 NATC77      ***     SSQ21635                    Receptacle, Jam Nut
                 NATC99      ***     SSQ21635                    Receptacle, Weld Mtg
                 NBO         A       40M39569                    Receptacle, Flange Mtg
                 NBOH        **      40M39569                    Receptacle, Hermetic
                 NB3H        **      40M39569                    Receptacle, Hermetic
                 NB4         A       40M39569                    Receptacle, Flange Mtg
                 NB5H        **      40M39569                    Thru-Bulkhead, Hermetic
                 NB6         A       40M39569                    Plug, Straight
                 NB6G        A       40M39569                    Plug, Straight,EMI
                 NB7         A       40M39569                    Receptacle, Jam Nut
                 NB7H        **      40M39569                    Receptacle, Hermetic
                 NB8H        **      40M39569                    Receptacle, Hermetic
                 NLSO        F       40M38277                    Receptacle, Flange Mtg
                 NLS3H       **      40M38277                    Receptacle, Hermetic
                 NLS6        F       40M38277                    Plug, Straight
                 NLS6G       F       40M38277                    Plug, Straight, EMI
                 NLS7        F       40M38277                    Receptacle, Jam Nut
                 NLS7H       **      40M38277                    Receptacle, Jam Nut
                 NZGL00      H**     SSQ21635                    Receptacle, Flange
                 NZGL03      ***     SSQ21635                    Receptacle, Lever
                 NZGL06      H**     SSQ21635                    Plug
                 NZGL07      H**     SSQ21635                    Receptacle, Weld Mtg
                 NZGL09      ***     SSQ21635                    Receptacle, Weld Mtg
                 NZGL66      H**     SSQ21635                    Plug
                 NZGL77      ***     SSQ21635                    Receptacle, Jam Nut
                 NZGL99      ***     SSQ21635                    Receptacle, Weld Mtg


                 *   Consult factory
                 **  Connector does not accommodate rear accessories
                 H*  NATC Series size 09 through 25 mates to Glenair Connector Designator H, consult factory for sizes 33 & 37
                 H** NZGL Series requires special accessories manufactured by Glenair, consult factory
                 ***  Connector noted does not have accessory thread.  (NZGL and NATC hermetic/control leakage classes.)
