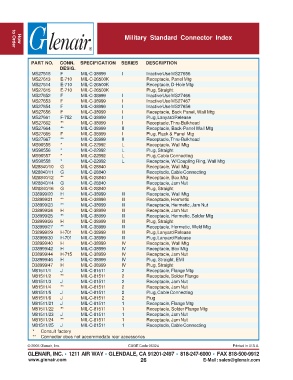

Military Standard Connector Index
How
to Order

PART NO. CONN. SPECIFICATION SERIES DESCRIPTION
DESIG.
MS27515 F MIL-C-38999 I Inactive Use MS27656
MS27613 E-710 MIL-C-26500K Receptacle, Panel Mtg
MS27614 E-710 MIL-C-26500K Receptacle, D-Hole Mtg
MS27615 E-710 MIL-C-26500K Plug, Straight
MS27652 F MIL-C-38999 I Inactive Use MS27466
MS27653 F MIL-C-38999 I Inactive Use MS27467
MS27654 F MIL-C-38999 I Inactive Use MS27656
MS27656 F MIL-C-38999 I Receptacle, Back Panel, Wall Mtg
MS27661 F-752 MIL-C-38999 I Plug, Lanyard Release
MS27662 ** MIL-C-38999 I Receptacle, Thru-Bulkhead
MS27664 ** MIL-C-38999 II Receptacle, Back-Panel Wall Mtg
MS27665 F MIL-C-38999 I Plug, Rack & Panel Mtg
MS27667 ** MIL-C-38999 II Receptacle, Thru-Bulkhead
MS90555 * MIL-C-22992 L Receptacle, Wall Mtg
MS90556 * MIL-C-22992 L Plug, Straight
MS90557 * MIL-C-22992 L Plug, Cable Connecting
MS90558 * MIL-C-22992 L Receptacle, W/Coupling Ring, Wall Mtg
M28840/10 G MIL-C-28840 Receptacle, Wall Mtg
M28840/11 G MIL-C-28840 Receptacle, Cable Connecting
M28840/12 ** MIL-C-28840 Receptacle, Box Mtg
M28840/14 G MIL-C-28840 Receptacle, Jam Nut
M28840/16 G MIL-C-28840 Plug, Straight
D38999/20 H MIL-C-38999 III Receptacle, Wall Mtg
D38999/21 ** MIL-C-38999 III Receptacle, Hermetic
D38999/23 ** MIL-C-38999 III Receptacle, Hermetic, Jam Nut
D38999/24 H MIL-C-38999 III Receptacle, Jam Nut
D38999/25 ** MIL-C-38999 III Receptacle, Hermetic, Solder Mtg
D38999/26 H MIL-C-38999 III Plug, Straight
D38999/27 ** MIL-C-38999 III Receptacle, Hermetic, Weld Mtg
D38999/29 H-701 MIL-C-38999 III Plug, Lanyard Release
D38999/30 H-701 MIL-C-38999 III Plug, Lanyard Release
D38999/40 H MIL-C-38999 IV Receptacle, Wall Mtg
D38999/42 H MIL-C-38999 IV Receptacle, Box Mtg
D38999/44 H-715 MIL-C-38999 IV Receptacle, Jam Nut
D38999/46 H MIL-C-38999 IV Plug, Straight, EMI
D38999/47 H MIL-C-38999 IV Plug, Straight
M81511/1 J MIL-C-81511 2 Receptacle, Flange Mtg
M81511/2 ** MIL-C-81511 2 Receptacle, Solder Flange
M81511/3 J MIL-C-81511 2 Receptacle, Jam Nut
M81511/4 ** MIL-C-81511 2 Receptacle, Jam Nut
M81511/5 J MIL-C-81511 2 Plug, Cable Connecting
M81511/6 J MIL-C-81511 2 Plug
M81511/21 J MIL-C-81511 1 Receptacle, Flange Mtg
M81511/22 ** MIL-C-81511 1 Receptacle, Solder Flange Mtg
M81511/23 J MIL-C-81511 1 Receptacle, Jam Nut
M81511/24 ** MIL-C-81511 1 Receptacle, Jam Nut
M81511/25 J MIL-C-81511 1 Receptacle, Cable Connecting
* Consult factory
** Connector does not accommodate rear accessories
