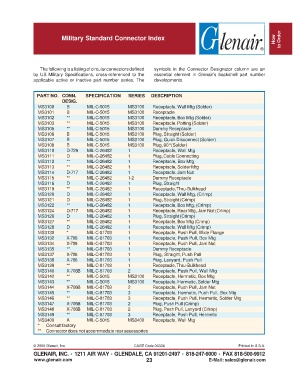

Military Standard Connector Index How to Order

The following is a listing of circular connectors defined symbols in the Connector Designator column are an
by US Military Specifications, cross-referenced to the essential element in Glenair’s backshell part number
applicable active or inactive part number series. The developments.

PART NO. CONN. SPECIFICATION SERIES DESCRIPTION
DESIG.
MS3100 B MIL-C-5015 MS3100 Receptacle, Wall Mtg (Solder)
MS3101 B MIL-C-5015 MS3100 Receptacle
MS3102 ** MIL-C-5015 MS3100 Receptacle, Box Mtg (Solder)
MS3103 ** MIL-C-5015 MS3100 Receptacle, Potting (Solder)
MS3105 ** MIL-C-5015 MS3100 Dummy Receptacle
MS3106 B MIL-C-5015 MS3100 Plug, Straight (Solder)
MS3107 B MIL-C-5015 MS3100 Plug, Quick Disconnect (Solder)
MS3108 B MIL-C-5015 MS3100 Plug, 90° (Solder)
MS3110 D-729 MIL-C-26482 1 Receptacle, Wall Mtg
MS3111 D MIL-C-26482 1 Plug, Cable Connecting
MS3112 ** MIL-C-26482 1 Receptacle, Box Mtg
MS3113 ** MIL-C-26482 1 Receptacle, Solder Mtg
MS3114 D-717 MIL-C-26482 1 Receptacle, Jam Nut
MS3115 ** MIL-C-26482 1-2 Dummy Receptacle
MS3116 D MIL-C-26482 1 Plug, Straight
MS3119 ** MIL-C-26482 1 Receptacle, Thru-Bulkhead
MS3120 D MIL-C-26482 1 Receptacle, Wall Mtg, (Crimp)
MS3121 D MIL-C-26482 1 Plug, Straight (Crimp)
MS3122 ** MIL-C-26482 1 Receptacle, Box Mtg, (Crimp)
MS3124 D-717 MIL-C-26482 1 Receptacle, Rear Mtg, Jam Nut (Crimp)
MS3126 D MIL-C-26482 1 Plug, Straight (Crimp)
MS3127 ** MIL-C-26482 1 Receptacle, Box Mtg (Crimp)
MS3128 D MIL-C-26482 1 Receptacle, Wall Mtg (Crimp)
MS3130 * MIL-C-81703 1 Receptacle, Push Pull, Wide Flange
MS3132 X-706 MIL-C-81703 1 Receptacle, Push Pull, Box Mtg
MS3134 X-706 MIL-C-81703 1 Receptacle, Push Pull, Jam Nut
MS3135 ** MIL-C-81703 1 Dummy Receptacle
MS3137 X-706 MIL-C-81703 1 Plug, Straight, Push Pull
MS3138 X-706 MIL-C-81703 1 Plug, Lanyard, Push Pull
MS3139 ** MIL-C-81703 1 Receptacle, Thru-Bulkhead
MS3140 X-706B MIL-C-81703 2 Receptacle, Push Pull, Wall Mtg
MS3142 ** MIL-C-5015 MS3100 Receptacle, Hermetic, Box Mtg
MS3143 ** MIL-C-5015 MS3100 Receptacle, Hermetic, Solder Mtg
MS3144 X-706B MIL-C-81703 2 Receptacle, Push Pull, Jam Nut
MS3145 ** MIL-C-81703 3 Receptacle, Hermetic, Push Pull, Box Mtg
MS3146 ** MIL-C-81703 3 Receptacle, Push Pull, Hermetic, Solder Mtg
MS3147 X-706B MIL-C-81703 2 Plug, Push Pull (Crimp)
MS3148 X-706B MIL-C-81703 2 Plug, Push Pull, Lanyard (Crimp)
MS3149 ** MIL-C-81703 3 Receptacle, Push Pull, Hermetic
MS3400 A MIL-C-5015 MS3400 Receptacle, Wall Mtg
* Consult factory
** Connector does not accommodate rear accessories
