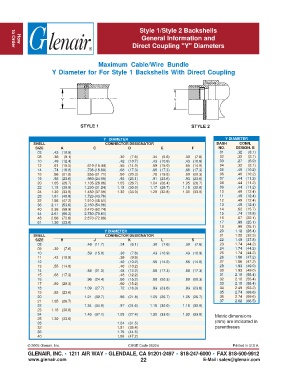

Page 24 - Circular Connector Backshells and Accessories

Style 1/Style 2 Backshells
General Information and
Direct Coupling "Y" Diameters
How
to Order

Maximum Cable/Wire Bundle
Y Diameter for For Style 1 Backshells With Direct Coupling

Y Y

STYLE 1 STYLE 2

Y DIAMETER Y DIAMETER
SHELL CONNECTOR DESIGNATOR DASH CONN.
SIZE A C D E F NO. DESIGN. B
03 .43 (10.9) 01 .32 (8.1)
08 .36 (9.1) .30 (7.6) .34 (8.6) .30 (7.6) 02 .32 (8.1)
10 .49 (12.4) .42 (10.7) .43 (10.9) .43 (10.9) 03 .27 (6.9)
12 .61 (15.5) .610 (15.44) .55 (14.0) .59 (15.0) .55 (14.0) 04 .32 (8.1)
14 .74 (18.8) .736 (18.69) .68 (17.3) .68 (17.3) .68 (17.3) 05 .40 (10.2)
16 .86 (21.8) .855 (21.71) .80 (20.3) .78 (19.8) .80 (20.3) 06 .40 (10.2)
18 .93 (23.6) .980 (24.89) .93 (23.1) .91 (23.6) .93 (23.6) 07 .44 (11.2)
20 1.05 (26.7) 1.105 (28.06) 1.05 (26.7) 1.04 (26.4) 1.05 (26.7) 08 .44 (11.2)
22 1.18 (30.0) 1.230 (31.24) 1.18 (30.0) 1.17 (29.7) 1.18 (30.0) 09 .44 (11.2)
24 1.30 (33.0) 1.480 (37.59) 1.30 (33.0) 1.29 (32.8) 1.30 (33.0) 10 .49 (12.4)
28 1.61 (40.9) 1.723 (43.76) 11 .49 (12.4)
32 1.86 (47.2) 1.910 (48.51) 12 .49 (12.4)
36 2.11 (53.6) 2.160 (54.86) 13 .49 (12.4)
40 2.36 (59.9) 2.470 (62.74) 14 .62 (15.7)
44 2.61 (66.3) 2.780 (70.61) 15 .74 (18.8)
48 2.86 (72.6) 2.870 (72.89) 16 .87 (22.1)
61 1.30 (33.0) 17 .99 (25.1)
18 .99 (25.1)
Y DIAMETER 20 1.12 (28.4)
SHELL CONNECTOR DESIGNATOR 21 1.28 (32.5)
SIZE H J K L S 22 1.49 (37.8)
08 .46 (11.7) .24 (6.1) .30 (7.6) .30 (7.6) 23 1.74 (44.2)
09 .30 (7.6) 24 1.74 (44.2)
10 .59 (15.0) .30 (7.6) .43 (10.9) .43 (10.9) 25 1.74 (44.2)
11 .43 (10.9) .39 (9.9) 26 1.86 (47.2)
12 .40 (10.2) .55 (14.0) .55 (14.0) 27 1.86 (47.2)
13 .55 (14.0) .40 (10.2) 28 1.93 (49.0)
14 .84 (21.3) .48 (12.2) .68 (17.3) .68 (17.3) 30 1.93 (49.0)
15 .68 (17.3) .48 (12.2) 31 2.18 (55.4)
16 .96 (24.4) .60 (15.2) .80 (20.3) .80 (20.3) 32 2.18 (55.4)
17 .80 (20.3) .60 (15.2) 33 2.18 (55.4)
18 1.09 (27.7) .72 (18.3) .93 (23.6) .93 (23.6) 34 2.49 (63.2)
19 .93 (23.6) 35 2.74 (69.6)
20 1.21 (30.7) .86 (21.8) 1.05 (26.7) 1.05 (26.7) 36 2.74 (69.6)
21 1.05 (26.7) 37 2.62 (66.5)
22 1.34 (34.0) .97 (24.6) 1.18 (30.0) 1.18 (30.0)
23 1.18 (30.0)
24 1.46 (37.1) 1.08 (27.4) 1.30 (33.0) 1.30 (33.0) Metric dimensions
25 1.30 (33.0)
28 1.24 (31.5) (mm) are indicated in
32 1.51 (38.4) parentheses
36 1.75 (44.5)
40 1.86 (47.2)
