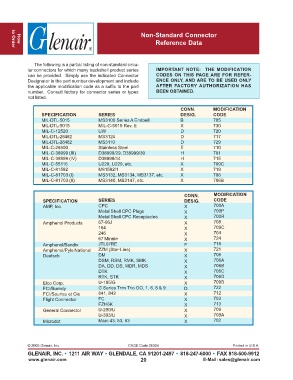

Page 22 - Circular Connector Backshells and Accessories

Non-Standard Connector
Reference Data
How
to Order

The following is a partial listing of non-standard circu-
lar connectors for which many backshell product series IMPORTANT NOTE: THE MODIFICATION
can be provided. Simply use the indicated Connector CODES ON THIS PAGE ARE FOR REFER-
Designator in the part number development and include ENCE ONLY, AND ARE TO BE USED ONLY
the applicable modification code as a suffix to the part AFTER FACTORY AUTHORIZATION HAS
number. Consult factory for connector series or types BEEN OBTAINED.
not listed.

CONN. MODIFICATION
SPECIFICATION SERIES DESIG. CODE
MIL-DTL-5015 MS3100 Series A Endbell B 705
MIL-DTL-5015 MIL-C-5015 Rev. E X 730
MIL-C-12520 UW D 720
MIL-DTL-26482 MS3124 D 717
MIL-DTL-26482 MS3110 D 729
MIL-C-26500 Stainless Steel E 710
MIL-C-38999 (III) D38999/29, D38999/30 H 701
MIL-C-38999 (IV) D38999/44 H 715
MIL-C-55116 U228, U229, etc. X 709C
MIL-C-81582 M81582/1 X 719
MIL-C-81703 (I) MS3132, MS3134, MS3137, etc. X 706
MIL-C-81703 (II) MS3140, MS3147, etc. X 706B

CONN. MODIFICATION
SPECIFICATION SERIES DESIG. CODE
AMP, Inc. CPC X 700A
Metal Shell CPC Plugs X 700P
Metal Shell CPC Receptacles X 700R
Amphenol Products 67-06J X 708
164 X 709C
246 X 704
67 Minnie X 724
Amphenol/Bendix JTL07RE F 716
Amphenol/Pyle National ZZM (Star-Line) X 721
Deutsch DM X 706
DSM, RSM, RMK, SMK X 706A
DA, DD, DS, MDR, MDS X 706B
DTK X 706C
RTK, STK X 706D
Elco Corp. U-185/G X 709B
FCI/Burndy G Series Trim Trio GO, 1, 6, 8 & 9 D 722
FCI/Souriau et Cie 841, 842 X 712
Flight Connector FC X 703
FZH6K X 713
General Connector U-290/U X 709
U-393/U X 709A
Microdot Marc 43, 53, 63 X 702

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com 20 E-Mail: sales@glenair.com
