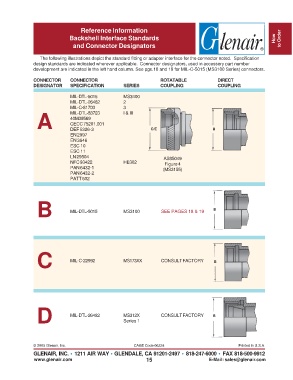

Page 17 - Circular Connector Backshells and Accessories

Reference Information
Backshell Interface Standards How to Order
and Connector Designators

The following illustrations depict the standard fitting or adapter interface for the connector noted. Specification
design standards are indicated wherever applicable. Connector designators, used in accessory part number
development are indicated in the left hand column. See pgs.18 and 19 for MIL-C-5015 (MS3100 Series) connectors.

CONNECTOR CONNECTOR ROTATABLE DIRECT
DESIGNATOR SPECIFICATION SERIES COUPLING COUPLING
MIL-DTL-5015 MS3400
MIL-DTL-26482 2
MIL-C-81703 3
A 40M39569
I & III
MIL-DTL-83723
CECC 75201.001
DEF 5326-3
EN 2997 C/E B
EN 3646
ESC 10
ESC 11
LN 29504 AS85049
NFC 93422 HE302 Figure 4
PAN 6432-1 (MS3155)
PAN 6432-2
PATT 602

B MIL-DTL-5015 MS3100 SEE PAGES 18 & 19 B

C MIL-C-22992 MS173XX CONSULT FACTORY B

D MIL-DTL-26482 MS312X CONSULT FACTORY B

Series 1
