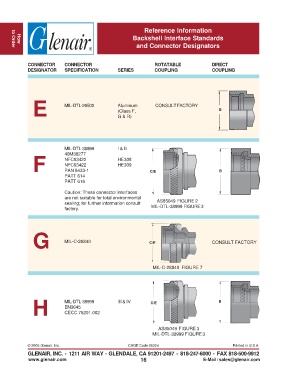

Page 18 - Circular Connector Backshells and Accessories

Reference Information
Backshell Interface Standards
and Connector Designators
How
to Order

CONNECTOR CONNECTOR ROTATABLE DIRECT
DESIGNATOR SPECIFICATION SERIES COUPLING COUPLING

E MIL-DTL-26500 Aluminum CONSULT FACTORY B

(Class F,
G & R)

MIL-DTL-38999 I & II
40M38277
F NFC93422 HE308
NFC93422
HE309
PAN 6433-1
PATT 614 C/E B
PATT 616
Caution: These connector interfaces
are not suitable for total environmental
sealing; for further information consult AS85049 FIGURE 2
factory. MIL-DTL-38999 FIGURE 3

G MIL-C-28840 C/E CONSULT FACTORY

MIL-C-28840 FIGURE 7

H MIL-DTL-38999 III & IV C/E B
EN3645
CECC 75201.002

AS85049 FIGURE 3
MIL-DTL-38999 FIGURE 3

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
