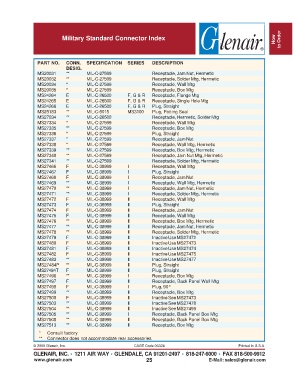

Military Standard Connector Index How to Order
PART NO. CONN. SPECIFICATION SERIES DESCRIPTION
DESIG.
MS20031 ** MIL-C-27599 Receptacle, Jam Nut, Hermetic
MS20032 ** MIL-C-27599 Receptacle, Solder Mtg, Hermetic
MS20034 * MIL-C-27599 Receptacle, Wall Mtg
MS20035 * MIL-C-27599 Receptacle, Box Mtg
MS24264 E MIL-C-26500 F, G & R Receptacle, Flange Mtg
MS24265 E MIL-C-26500 F, G & R Receptacle, Single Hole Mtg
MS24266 E MIL-C-26500 F, G & R Plug, Straight
MS25183 ** MIL-C-5015 MS3100 Plug, Potting Seal
MS27034 ** MIL-C-26500 Receptacle, Hermetic, Solder Mtg
MS27334 * MIL-C-27599 Receptacle, Wall Mtg
MS27335 ** MIL-C-27599 Receptacle, Box Mtg
MS27336 * MIL-C-27599 Plug, Straight
MS27337 * MIL-C-27599 Receptacle, Jam Nut
MS27338 * MIL-C-27599 Receptacle, Wall Mtg, Hermetic
MS27339 ** MIL-C-27599 Receptacle, Box Mtg, Hermetic
MS27340 ** MIL-C-27599 Receptacle, Jam Nut Mtg, Hermetic
MS27341 ** MIL-C-27599 Receptacle, Solder Mtg, Hermetic
MS27466 F MIL-C-38999 I Receptacle, Wall Mtg
MS27467 F MIL-C-38999 I Plug, Straight
MS27468 F MIL-C-38999 I Receptacle, Jam Nut
MS27469 ** MIL-C-38999 I Receptacle, Wall Mtg, Hermetic
MS27470 ** MIL-C-38999 I Receptacle, Jam Nut, Hermetic
MS27471 ** MIL-C-38999 I Receptacle, Solder Mtg, Hermetic
MS27472 F MIL-C-38999 II Receptacle, Wall Mtg
MS27473 F MIL-C-38999 II Plug, Straight
MS27474 F MIL-C-38999 II Receptacle, Jam Nut
MS27475 F MIL-C-38999 II Receptacle, Wall Mtg
MS27476 ** MIL-C-38999 II Receptacle, Box Mtg, Hermetic
MS27477 ** MIL-C-38999 II Receptacle, Jam Nut, Hermetic
MS27478 ** MIL-C-38999 II Receptacle, Solder Mtg, Hermetic
MS27479 F MIL-C-38999 II Inactive Use MS27472
MS27480 F MIL-C-38999 II Inactive Use MS27473
MS27481 F MIL-C-38999 II Inactive Use MS27474
MS27482 F MIL-C-38999 II Inactive Use MS27475
MS27483 ** MIL-C-38999 II Inactive Use MS27477
MS27484P ** MIL-C-38999 II Plug, Straight
MS27484T F MIL-C-38999 II Plug, Straight
MS27496 ** MIL-C-38999 I Receptacle, Box Mtg
MS27497 F MIL-C-38999 II Receptacle, Back Panel Wall Mtg
MS27498 F MIL-C-38999 I Plug, 90°
MS27499 ** MIL-C-38999 II Receptacle, Box Mtg
MS27500 F MIL-C-38999 II Inactive See MS27473
MS27503 ** MIL-C-38999 II Inactive See MS27478
MS27504 ** MIL-C-38999 II Inactive See MS27499
MS27505 ** MIL-C-38999 I Receptacle, Back Panel Box Mtg
MS27508 ** MIL-C-38999 II Receptacle, Back Panel Box Mtg
MS27513 ** MIL-C-38999 II Receptacle, Box Mtg
* Consult factory
** Connector does not accommodate rear accessories
