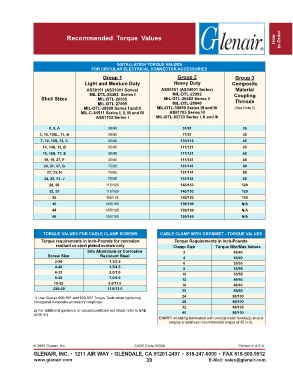

Page 41 - Circular Connector Backshells and Accessories

Recommended Torque Values How to Order

INSTALLATION TORQUE VALUES
FOR CIRCULAR ELECTRICAL CONNECTOR ACCESSORIES
Group 1 Group 2 Group 3
Light and Medium Duty Heavy Duty Composite
AS50151 (AS31001 Series) AS50151 (AS34001 Series) Material
MIL-DTL-26482 Series I MIL-DTL-22992 Coupling
Shell Sizes MIL-DTL-26500 MIL-DTL-26482 Series II
MIL-DTL-27599 MIL-DTL-28840 Threads
MIL-DTL-38999 Series I and II MIL-DTL-38999 Series III and IV (See Note 1)
MIL-C-81511 Series I, II, III and IV AS81703 Series III
AS81703 Series I MIL-DTL-83723 Series I, II and III

8, 9, A 30/40 51/61 35
3, 10, 10SL, 11, B 30/40 71/81 35
7, 12, 12S, 13, C 35/45 103/113 45
14, 14S, 15, D 35/45 111/121 45
16, 16S, 17, E 35/45 111/121 45
18, 19, 27, F 35/45 111/121 45
20, 21, 37, G 75/85 131/141 80
22, 23, H 75/85 131/141 80
24, 25, 61, J 75/85 131/141 80
28, 29 115/125 143/153 120
32, 33 115/125 143/153 120
36 115/125 142/153 120
40 155/165 159/169 N/A
44 155/165 159/169 N/A
48 155/165 159/169 N/A

TORQUE VALUES FOR CABLE CLAMP SCREWS CABLE CLAMP WITH GROMMET - TORQUE VALUES
Torque requirements in Inch-Pounds for corrosion Torque Requirements in Inch-Pounds
resitant or steel plated screws only Clamp Size Torque Min/Max Values
Into Aluminum or Corrosion 3 30/40
Screw Size Resistant Steel 4 30/40
2-56 1.5/2.5 6 35/55
4-40 3.5/4.5 8 35/55
6-32 5.0/7.0 10 35/55
8-32 7.0/9.0 12 40/60
10-32 9.0/11.0 16 40/60
.250-20 11.0/13.0
20 40/60
1) Use Glenair 600-091 and 600-007 Torque Tools when tightening 24 80/100
hexagonal composite accessory couplings. 28 80/100
32 80/100
2) For additional guidance or values/conditions not listed, refer to SAE 40 80/100
AIR6151.
EMI/RFI shielding terminated with conical metal ferrule(s) should
employ a minimum recommended torque of 35 in-lb.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com 39 E-Mail: sales@glenair.com
