Page 42 - Circular Connector Backshells and Accessories

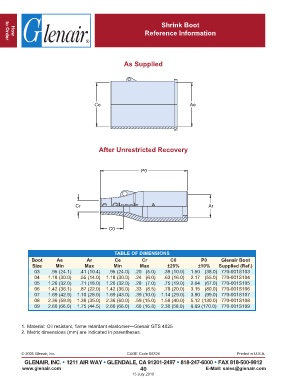

Shrink Boot

Reference Information
How
to Order

As Supplied

Ce Ae

After Unrestricted Recovery

P0

Cr Ar

C0

TABLE OF DIMENSIONS
Boot Ae Ar Ce Cr C0 P0 Glenair Boot
Size Min Max Min Max ±20% ±10% Supplied (Ref.)

03 .95 (24.1) .41 (10.4) .95 (24.0) .20 (5.0) .39 (10.0) 1.50 (38.0) 770-001S103
04 1.18 (30.0) .55 (14.0) 1.18 (30.0) .24 (6.0) .63 (16.0) 2.17 (55.0) 770-001S104

05 1.26 (32.0) .71 (18.0) 1.26 (32.0) .28 (7.0) .75 (19.0) 2.64 (67.0) 770-001S105
06 1.42 (36.1) .87 (22.0) 1.42 (36.0) .33 (8.5) .79 (20.0) 3.15 (80.0) 770-001S106

07 1.69 (42.9) 1.10 (28.0) 1.69 (43.0) .39 (10.0) 1.14 (29.0) 3.90 (99.0) 770-001S107

08 2.36 (59.9) 1.38 (35.0) 2.36 (60.0) .59 (15.0) 1.58 (40.0) 5.12 (130.0) 770-001S108

09 2.60 (66.0) 1.75 (44.5) 2.60 (66.0) .66 (16.8) 2.30 (58.0) 6.69 (170.0) 770-001S109
1. Material: Oil resistant, flame retardant elastomer—Glenair GTS 4025
2. Metric dimensions (mm) are indicated in parentheses.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com 40 E-Mail: sales@glenair.com
13 July 2010
