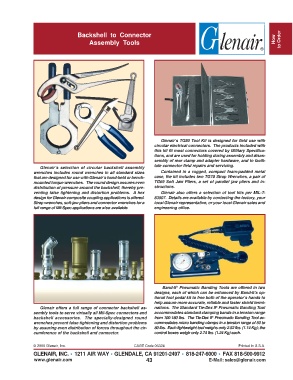

Page 45 - Circular Connector Backshells and Accessories

Backshell to Connector
Assembly Tools How to Order

Glenair’s TG80 Tool Kit is designed for field use with
circular electrical connectors. The products included with
this kit fit most connectors covered by Military Specifica-
tions, and are used for holding during assembly and disas-
sembly of rear clamp and adapter hardware, and to facili-
Glenair’s selection of circular backshell assembly tate connector field repairs and servicing.
wrenches includes round wrenches in all standard sizes Contained in a rugged, compact foam-padded metal
that are designed for use with Glenair’s hand-held or bench- case, the kit includes two TG70 Strap Wrenches, a pair of
mounted torque wrenches. The round design assures even TG69 Soft Jaw Pliers, a set of parallel jaw pliers and in-
distribution of pressure around the backshell, thereby pre- structions.
venting false tightening and distortion problems. A hex Glenair also offers a selection of tool kits per MIL-T-
design for Glenair composite coupling applications is offered. 83507. Details are available by contacting the factory, your
Strap wrenches, soft-jaw pliers and connector wrenches for a local Glenair representative, or your local Glenair sales and
full range of Mil-Spec applications are also available. engineering office.

Band-It Pneumatic Banding Tools are offered in two
®
designs, each of which can be enhanced by Band-It’s op-
tional foot pedal kit to free both of the operator’s hands to
help assure more accurate, reliable and faster shield termi-
®
Glenair offers a full range of connector backshell as- nations. The Standard Tie-Dex II Pneumatic Banding Tool
sembly tools to serve virtually all Mil-Spec connectors and accommodates standard clamping bands in a tension range
backshell accessories. The specially-designed round from 100-180 lbs. The Tie-Dex II Pneumatic Banding Tool ac-
®
wrenches prevent false tightening and distortion problems commodates micro banding clamps in a tension range of 50 to
by assuring even distribution of forces throughout the cir- 80 lbs. Each lightweight tool weighs only 2.52 lbs. (1.14 Kg); the
cumference of the backshell and connector. control boxes weigh only 2.74 lbs. (1.24 Kg) each.
