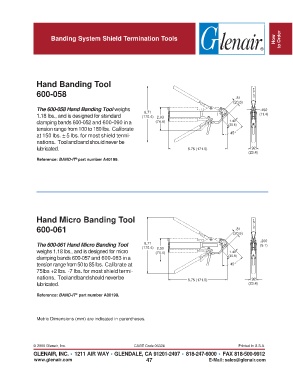

Page 49 - Circular Connector Backshells and Accessories

Banding System Shield Termination Tools How to Order

Hand Banding Tool
600-058
.81
(20.6)
The 600-058 Hand Banding Tool weighs 6.71 .450
1.18 lbs., and is designed for standard (170.4) 2.93 (11.4)
1.40
clamping bands 600-052 and 600-090 in a (74.4) (35.6)
tension range from 100 to 180 lbs. Calibrate
at 150 lbs. ± 5 lbs. for most shield termi- 45°
nations. Tool and band should never be
lubricated. 6.75 (171.5) .92
(23.4)
®
Reference: BAND-IT part number A40199.

Hand Micro Banding Tool

600-061 .81
(20.6)
.200
6.71
The 600-061 Hand Micro Banding Tool (170.4) 2.93 (5.1)
weighs 1.18 lbs., and is designed for micro (74.4) 1.40
clamping bands 600-057 and 600-083 in a (35.6)
tension range from 50 to 85 lbs. Calibrate at 45°
75lbs +2 lbs. -7 lbs. for most shield termi-
nations. Tool and band should never be 6.75 (171.5) .92
lubricated. (23.4)

Reference: BAND-IT part number A30199.
®

Metric Dimensions (mm) are indicated in parentheses.
