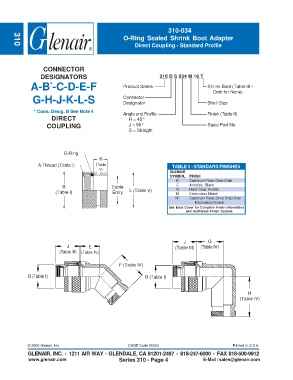

310-034
O-Ring Sealed Shrink Boot Adapter
Direct Coupling - Standard Profile
310

CONNECTOR
DESIGNATORS 310 D S 034 M 16 T
A-B -C-D-E-F Product Series Shrink Boot (Table III -
*
Omit for None)
G-H-J-K-L-S Connector Shell Size
Designator
* Conn. Desig. B See Note 4 Angle and Profile Finish (Table II)
DIRECT H = 45°
COUPLING J = 90° Basic Part No.
S = Straight

O-Ring
K
A Thread (Table I) (Table TABLE II - STANDARD FINISHES
V)
GLENAIR
SYMBOL FINISH
B Cadmium Plate, Olive Drab
B Cable C Anodize, Black
(Table I) Entry L (Table V) G Hard Coat, Anodic
Electroless Nickel
M
NF Cadmium Plate, Olive Drab Over
Electroless Nickel
See Back Cover for Complete Finish Information
and Additional Finish Options

J G
J E (Table III) (Table IV)
(Table III) (Table IV)

F (Table IV)

B (Table I) B (Table I)

H
(Table IV)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
