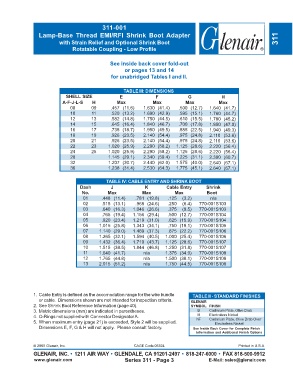

Page 59 - Circular Connector Backshells and Accessories

311-001
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot 311
Rotatable Coupling - Low Profile

See inside back cover fold-out
or pages 13 and 14
for unabridged Tables I and II.

TABLE III: DIMENSIONS
SHELL SIZE E F G H
A-F-J-L-S H Max Max Max Max
08 09 .457 (11.6) 1.630 (41.4) .500 (12.7) 1.640 (41.7)
10 11 .520 (13.2) 1.690 (42.9) .595 (15.1) 1.760 (44.7)
12 13 .582 (14.8) 1.750 (44.5) .610 (15.5) 1.780 (45.2)
14 15 .645 (16.4) 1.840 (46.7) .700 (17.8) 1.850 (47.0)
16 17 .738 (18.7) 1.950 (49.5) .885 (22.5) 1.940 (49.3)
18 19 .926 (23.5) 2.140 (54.4) .975 (24.8) 2.110 (53.6)
20 21 .926 (23.5) 2.140 (54.4) .975 (24.8) 2.110 (53.6)
22 23 1.020 (25.9) 2.290 (58.2) 1.125 (28.6) 2.220 (56.4)
24 25 1.020 (25.9) 2.290 (58.2) 1.125 (28.6) 2.220 (56.4)
28 1.145 (29.1) 2.340 (59.4) 1.225 (31.1) 2.390 (60.7)
32 1.207 (30.7) 2.440 (62.0) 1.575 (40.0) 2.640 (67.1)
36 1.238 (31.4) 2.530 (64.3) 1.775 (45.1) 2.640 (67.1)

TABLE IV: CABLE ENTRY AND SHRINK BOOT
Dash J K Cable Entry Shrink
No. Max Max Max Boot
01 .448 (11.4) .781 (19.8) .125 (3.2) n/a
02 .515 (13.1) .968 (24.6) .250 (6.4) 770-001S103
03 .640 (16.3) 1.046 (26.6) .375 (9.5) 770-001S103
04 .765 (19.4) 1.156 (29.4) .500 (12.7) 770-001S104
05 .920 (23.4) 1.219 (31.0) .625 (15.9) 770-001S104
06 1.015 (25.8) 1.343 (34.1) .750 (19.1) 770-001S105
07 1.140 (29.0) 1.469 (37.3) .875 (22.2) 770-001S106
08 1.265 (32.1) 1.594 (40.5) 1.000 (25.4) 770-001S106
09 1.432 (36.4) 1.719 (43.7) 1.125 (28.6) 770-001S107
10 1.515 (38.5) 1.844 (46.8) 1.250 (31.8) 770-001S107
11 1.640 (41.7) n/a 1.375 (34.9) 770-001S108
12 1.765 (44.8) n/a 1.500 (38.1) 770-001S108
13 2.015 (51.2) n/a 1.750 (44.5) 770-001S108

1. Cable Entry is defined as the accomodation range for the wire bundle TABLE II - STANDARD FINISHES
or cable. Dimensions shown are not intended for inspection criteria. GLENAIR
2. See Shrink Boot Reference Information (page 40). SYMBOL FINISH
3. Metric dimensions (mm) are indicated in parentheses. B Cadmium Plate, Olive Drab
4. O-Rings not supplied with Connector Designator A. M Electroless Nickel
5. When maximum entry (page 21) is exceeded, Style 2 will be supplied. NF Cadmium Plate, Olive Drab Over
Electroless Nickel
Dimensions E, F, G & H will not apply. Please consult factory. See Inside Back Cover for Complete Finish
Information and Additional Finish Options

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 3 E-Mail: sales@glenair.com
