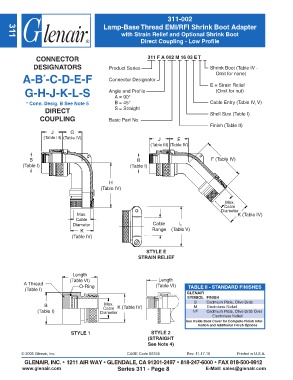

Page 64 - Circular Connector Backshells and Accessories

311-002
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot
311
Direct Coupling - Low Profile

CONNECTOR 311 F A 002 M 16 03 E T
DESIGNATORS Product Series Shrink Boot (Table IV -

A-B -C-D-E-F Connector Designator Omit for none)
*
E = Strain Relief
G-H-J-K-L-S Angle and Profile (Omit for nut)
A = 90°
* Conn. Desig. B See Note 5 B = 45° Cable Entry (Table IV, V)
DIRECT S = Straight Shell Size (Table I)
COUPLING Basic Part No.
Finish (Table II)
J G
(Table III) (Table IV) J E
(Table III) (Table IV)

B B F (Table IV)
(Table I) (Table I)

H
(Table IV)

Max.
Cable
Diameter
Max. K (Table IV)
Cable
Diameter Cable L
K Range (Table V)
(Table IV)

STYLE E
STRAIN RELIEF

Length
(Table VI) Length
A Thread O-Ring (Table VI)
(Table I) TABLE II - STANDARD FINISHES
GLENAIR
SYMBOL FINISH
B
Max.
B Cable K (Table IV) M Cadmium Plate, Olive Drab
Electroless Nickel
(Table I) Diameter NF Cadmium Plate, Olive Drab Over
Electroless Nickel
See Inside Back Cover for Complete Finish Infor-
mation and Additional Finish Options
STYLE 1 STYLE 2
(STRAIGHT
See Note 4)

© 2005 Glenair, Inc. CAGE Code 06324 Rev. 11.17.16 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 8 E-Mail: sales@glenair.com
