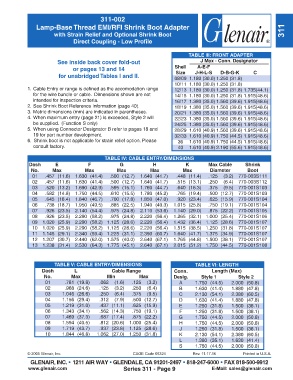

Page 65 - Circular Connector Backshells and Accessories

311-002
Lamp-Base Thread EMI/RFI Shrink Boot Adapter 311
with Strain Relief and Optional Shrink Boot
Direct Coupling - Low Profile

TABLE III: FRONT ADAPTER
See inside back cover fold-out J Max - Conn. Designator
or pages 13 and 14 Shell A-E-F
Size
J-H-L-S
D-B-G-K
for unabridged Tables I and II. 08/09 1.180 (30.0) 1.250 (31.8) C
10/11 1.180 (30.0) 1.250 (31.8)
1. Cable Entry or range is defined as the accomodation range 12/13 1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
for the wire bundle or cable. Dimensions shown are not 14/15 1.180 (30.0) 1.250 (31.8) 1.915 (48.6)
intended for inspection criteria. 16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
2. See Shrink Boot Reference Information (page 40). 18/19 1.380 (35.0)
1.560 (39.6) 1.915 (48.6)
3. Metric dimensions (mm) are indicated in parentheses. 20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
4. When maximum entry (page 21) is exceeded, Style 2 will 22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
be supplied. (Function S only) 24/25 1.380 (35.0)
1.560 (39.6) 1.915 (48.6)
5. When using Connector Designator B refer to pages 18 and 28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
19 for part number development. 32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
6. Shrink boot is not applicable for strain relief option. Please 36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
consult factory. 40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6)

TABLE IV: CABLE ENTRY/DIMENSIONS
Dash E F G H K Max Cable Shrink
No. Max Max Max Max Max Diameter Boot
01 .457 (11.6) 1.630 (41.4) .500 (12.7) 1.640 (41.7) .448 (11.4) .125 (3.2) 770-003S111
02 .457 (11.6) 1.630 (41.4) .500 (12.7) 1.640 (41.7) .515 (13.1) .250 (6.4) 770-003S112
03 .520 (13.2) 1.690 (42.9) .595 (15.1) 1.760 (44.7) .640 (16.3) .375 (9.5) 770-001S103
04 .582 (14.8) 1.750 (44.5) .610 (15.5) 1.780 (45.2) .765 (19.4) .500 (12.7) 770-001S103
05 .645 (16.4) 1.840 (46.7) .700 (17.8) 1.850 (47.0) .920 (23.4) .625 (15.9) 770-001S104
06 .738 (18.7) 1.950 (49.5) .885 (22.5) 1.940 (49.3) 1.015 (25.8) .750 (19.1) 770-001S104
07 .926 (23.5) 2.140 (54.4) .975 (24.8) 2.110 (53.6) 1.140 (29.0) .875 (22.2) 770-001S105
08 .926 (23.5) 2.290 (58.2) .975 (24.8) 2.220 (56.4) 1.265 (32.1) 1.000 (25.4) 770-001S106
09 1.020 (25.9) 2.290 (58.2) 1.125 (28.6) 2.220 (56.4) 1.432 (36.4) 1.125 (28.6) 770-001S107
10 1.020 (25.9) 2.290 (58.2) 1.125 (28.6) 2.220 (56.4) 1.515 (38.5) 1.250 (31.8) 770-001S107
11 1.145 (29.1) 2.340 (59.4) 1.225 (31.1) 2.390 (60.7) 1.640 (41.7) 1.375 (34.9) 770-001S107
12 1.207 (30.7) 2.440 (62.0) 1.575 (40.0) 2.640 (67.1) 1.765 (44.8) 1.500 (38.1) 770-001S107
13 1.238 (31.4) 2.530 (64.3) 1.775 (45.1) 2.640 (67.1) 2.015 (51.2) 1.750 (44.5) 770-001S108

TABLE V: CABLE ENTRY/DIMENSIONS TABLE VI: LENGTH
Dash L Cable Range Conn. Length (Max)
No. Max Min Max Desig. Style 1 Style 2
01 .781 (19.8) .062 (1.6) .125 (3.2) A 1.750 (44.5) 2.000 (50.8)
02 .968 (24.6) .125 (3.2) .250 (6.4) B 1.630 (41.4) 1.880 (47.8)
03 1.046 (26.6) .250 (6.4) .375 (9.5) C 2.130 (54.1) 2.380 (60.5)
04 1.156 (29.4) .312 (7.9) .500 (12.7) D 1.630 (41.4) 1.880 (47.8)
05 1.219 (31.0) .437 (11.1) .625 (15.9) E 1.250 (31.8) 1.500 (38.1)
06 1.343 (34.1) .562 (14.3) .750 (19.1) F 1.250 (31.8) 1.500 (38.1)
07 1.469 (37.3) .687 (17.4) .875 (22.2) G 1.750 (44.5) 2.000 (50.8)
08 1.594 (40.5) .812 (20.6) 1.000 (25.4) H 1.750 (44.5) 2.000 (50.8)
09 1.719 (43.7) .937 (23.8) 1.125 (28.6) J 1.250 (31.8) 1.500 (38.1)
10 1.844 (46.8) 1.062 (27.0) 1.250 (31.8) K 2.130 (54.1) 2.380 (60.5)
L 1.380 (35.1) 1.630 (41.4)
S 1.750 (44.5) 2.000 (50.8)

© 2005 Glenair, Inc. CAGE Code 06324 Rev. 11.17.16 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 9 E-Mail: sales@glenair.com
