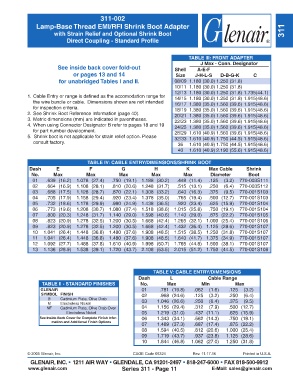

Page 67 - Circular Connector Backshells and Accessories

311-002
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot 311
Direct Coupling - Standard Profile

TABLE III: FRONT ADAPTER
J Max - Conn. Designator
See inside back cover fold-out Shell A-E-F
or pages 13 and 14 Size J-H-L-S D-B-G-K C
for unabridged Tables I and II. 08/09 1.180 (30.0) 1.250 (31.8)
10/11 1.180 (30.0) 1.250 (31.8)
12/13 1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
1. Cable Entry or range is defined as the accomodation range for 14/15 1.180 (30.0) 1.250 (31.8) 1.915 (48.6)
the wire bundle or cable. Dimensions shown are not intended 16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
for inspection criteria. 18/19 1.380 (35.0)
1.560 (39.6) 1.915 (48.6)
2. See Shrink Boot Reference Information (page 40). 20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
3. Metric dimensions (mm) are indicated in parentheses. 22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
4. When using Connector Designator B refer to pages 18 and 19 24/25 1.380 (35.0)
1.560 (39.6) 1.915 (48.6)
for part number development. 28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
5. Shrink boot is not applicable for strain relief option. Please 32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
consult factory. 36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6)

TABLE IV: CABLE ENTRY/DIMENSIONS/SHRINK BOOT
Dash E F G H K Max Cable Shrink
No. Max Max Max Max Max Diameter Boot
01 .639 (16.2) 1.078 (27.4) .750 (19.1) 1.188 (30.2) .448 (11.4) .125 (3.2) 770-003S111
02 .664 (16.9) 1.108 (28.1) .810 (20.6) 1.248 (31.7) .515 (13.1) .250 (6.4) 770-003S112
03 .688 (17.5) 1.128 (28.7) .870 (22.1) 1.308 (33.2) .640 (16.3) .375 (9.5) 770-001S103
04 .705 (17.9) 1.158 (29.4) .920 (23.4) 1.378 (35.0) .765 (19.4) .500 (12.7) 770-001S103
05 .732 (18.6) 1.178 (29.9) .980 (24.9) 1.438 (36.5) .920 (23.4) .625 (15.9) 770-001S104
06 .773 (19.6) 1.208 (30.7) 1.080 (27.4) 1.518 (38.6) 1.015 (25.8) .750 (19.1) 770-001S104
07 .800 (20.3) 1.248 (31.7) 1.140 (29.0) 1.598 (40.6) 1.140 (29.0) .875 (22.2) 770-001S105
08 .823 (20.9) 1.278 (32.5) 1.200 (30.5) 1.668 (42.4) 1.265 (32.1) 1.000 (25.4) 770-001S106
09 .823 (20.9) 1.278 (32.5) 1.200 (30.5) 1.668 (42.4) 1.432 (36.4) 1.125 (28.6) 770-001S107
10 1.041 (26.4) 1.448 (36.8) 1.480 (37.6) 1.908 (48.5) 1.515 (38.5) 1.250 (31.8) 770-001S107
11 1.041 (26.4) 1.448 (36.8) 1.480 (37.6) 1.908 (48.5) 1.640 (41.7) 1.375 (34.9) 770-001S107
12 1.092 (27.7) 1.488 (37.8) 1.610 (40.9) 1.998 (50.7) 1.765 (44.8) 1.500 (38.1) 770-001S107
13 1.136 (28.9) 1.538 (39.1) 1.720 (43.7) 2.108 (53.5) 2.015 (51.2) 1.750 (44.5) 770-001S108

TABLE V: CABLE ENTRY/DIMENSIONS
Dash L Cable Range
TABLE II - STANDARD FINISHES No. Max Min Max
GLENAIR 01 .781 (19.8) .062 (1.6) .125 (3.2)
SYMBOL FINISH 02 .968 (24.6) .125 (3.2) .250 (6.4)
B Cadmium Plate, Olive Drab 03 1.046 (26.6) .250 (6.4) .375 (9.5)
M Electroless Nickel
NF Cadmium Plate, Olive Drab Over 04 1.156 (29.4) .312 (7.9) .500 (12.7)
Electroless Nickel 05 1.219 (31.0) .437 (11.1) .625 (15.9)
See Inside Back Cover for Complete Finish Infor- 06 1.343 (34.1) .562 (14.3) .750 (19.1)
mation and Additional Finish Options
07 1.469 (37.3) .687 (17.4) .875 (22.2)
08 1.594 (40.5) .812 (20.6) 1.000 (25.4)
09 1.719 (43.7) .937 (23.8) 1.125 (28.6)
10 1.844 (46.8) 1.062 (27.0) 1.250 (31.8)
