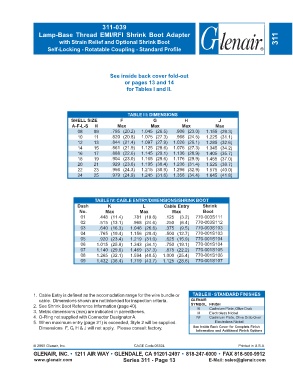

Page 69 - Circular Connector Backshells and Accessories

311-039
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot 311
Self-Locking - Rotatable Coupling - Standard Profile

See inside back cover fold-out
or pages 13 and 14
for Tables I and II.

TABLE III: DIMENSIONS
SHELL SIZE F G H J
A-F-L-S H Max Max Max Max
08 09 .795 (20.2) 1.045 (26.5) .906 (23.0) 1.155 (29.3)
10 11 .820 (20.8) 1.075 (27.3) .966 (24.5) 1.225 (31.1)
12 13 .844 (21.4) 1.097 (27.9) 1.026 (26.1) 1.285 (32.6)
14 15 .861 (21.9) 1.125 (28.6) 1.076 (27.3) 1.345 (34.2)
16 17 .888 (22.6) 1.145 (29.1) 1.136 (28.9) 1.405 (35.7)
18 19 .904 (23.0) 1.165 (29.6) 1.176 (29.9) 1.455 (37.0)
20 21 .929 (23.6) 1.195 (30.4) 1.236 (31.4) 1.525 (38.7)
22 23 .956 (24.3) 1.215 (30.9) 1.296 (32.9) 1.575 (40.0)
24 25 .979 (24.9) 1.245 (31.6) 1.356 (34.4) 1.645 (41.8)

TABLE IV: CABLE ENTRY/DIMENSIONS/SHRINK BOOT
Dash K L Cable Entry Shrink
No. Max Max Max Boot
01 .448 (11.4) .781 (19.8) .125 (3.2) 770-003S111
02 .515 (13.1) .968 (24.6) .250 (6.4) 770-003S112
03 .640 (16.3) 1.046 (26.6) .375 (9.5) 770-003S103
04 .765 (19.4) 1.156 (29.4) .500 (12.7) 770-001S103
05 .920 (23.4) 1.219 (31.0) .625 (15.9) 770-001S104
06 1.015 (25.8) 1.343 (34.1) .750 (19.1) 770-001S104
07 1.140 (29.0) 1.469 (37.3) .875 (22.2) 770-001S105
08 1.265 (32.1) 1.594 (40.5) 1.000 (25.4) 770-001S106
09 1.432 (36.4) 1.719 (43.7) 1.125 (28.6) 770-001S107

1. Cable Entry is defined as the accomodation range for the wire bundle or TABLE II - STANDARD FINISHES
cable. Dimensions shown are not intended for inspection criteria. GLENAIR
2. See Shrink Boot Reference Information (page 40). SYMBOL FINISH
Cadmium Plate, Olive Drab
B
3. Metric dimensions (mm) are indicated in parentheses. M Electroless Nickel
4. O-Ring not supplied with Connector Designator A. NF Cadmium Plate, Olive Drab Over
5. When maximum entry (page 21) is exceeded, Style 2 will be supplied. Electroless Nickel
Dimensions F, G, H & J will not apply. Please consult factory. See Inside Back Cover for Complete Finish
Information and Additional Finish Options

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 13 E-Mail: sales@glenair.com
