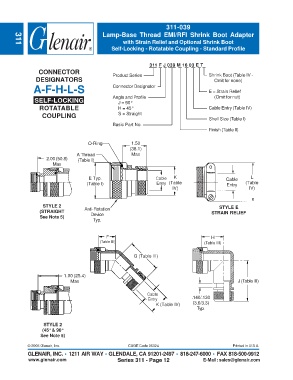

Page 68 - Circular Connector Backshells and Accessories

311-039
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot
311
Self-Locking - Rotatable Coupling - Standard Profile

311 F J 039 M 16 03 E T
CONNECTOR Product Series Shrink Boot (Table IV -
DESIGNATORS Omit for none)
A-F-H-L-S Connector Designator E = Strain Relief

Angle and Profile (Omit for nut)
SELF-LOCKING J = 90°
ROTATABLE H = 45° Cable Entry (Table IV)
COUPLING S = Straight
Shell Size (Table I)
Basic Part No.
Finish (Table II)

O-Ring 1.50
(38.1)
A Thread Max
2.00 (50.8) (Table I)
Max

E Typ. Cable K Cable L
(Table I) Entry (Table Entry (Table
IV) IV)

STYLE 2 STYLE E
(STRAIGHT Anti-Rotation STRAIN RELIEF
See Note 5) Device
Typ.

F H
(Table III) (Table III)

G (Table III)

1.00 (25.4)
Max J (Table III)

Cable
Entry .140/.130
K (Table IV) (3.6/3.3)
Typ.

STYLE 2
(45° & 90°
See Note 5)
