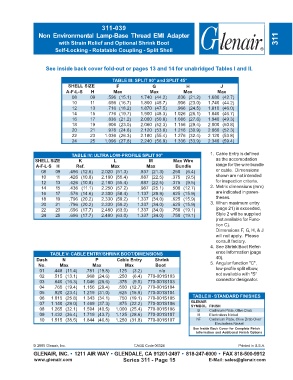

Page 71 - Circular Connector Backshells and Accessories

311-039
Non Environmental Lamp-Base Thread EMI Adapter
with Strain Relief and Optional Shrink Boot 311
Self-Locking - Rotatable Coupling - Split Shell

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: SPLIT 90° and SPLIT 45°
SHELL SIZE F G H J
A-F-L-S H Max Max Max Max
08 09 .596 (15.1) 1.740 (44.2) .836 (21.2) 1.680 (42.7)
10 11 .656 (16.7) 1.800 (45.7) .906 (23.0) 1.740 (44.2)
12 13 .716 (18.2) 1.870 (47.5) .966 (24.5) 1.810 (46.0)
14 15 .776 (19.7) 1.900 (48.3) 1.026 (26.1) 1.840 (46.7)
16 17 .836 (21.2) 2.000 (50.8) 1.086 (27.6) 1.940 (49.3)
18 19 .906 (23.0) 2.060 (52.3) 1.156 (29.4) 2.000 (50.8)
20 21 .976 (24.8) 2.120 (53.8) 1.216 (30.9) 2.060 (52.3)
22 23 1.036 (26.3) 2.180 (55.4) 1.276 (32.4) 2.120 (53.8)
24 25 1.096 (27.8) 2.240 (56.9) 1.336 (33.9) 2.340 (59.4)

TABLE IV: ULTRA LOW-PROFILE SPLIT 90° 1. Cable Entry is defined
SHELL SIZE K L M Max Wire as the accomodation
A-F-L-S H Ref. Max Max Bundle range for the wire bundle
08 09 .496 (12.6) 2.020 (51.3) .837 (21.3) .250 (6.4) or cable. Dimensions
10 11 .426 (10.8) 2.180 (55.4) .887 (22.5) .375 (9.5) shown are not intended
12 13 .426 (10.8) 2.180 (55.4) .887 (22.5) .375 (9.5) for inspection criteria.
14 15 .436 (11.1) 2.250 (57.2) .987 (25.1) .500 (12.7) 2. Metric dimensions (mm)
16 17 .576 (14.6) 2.300 (58.4) 1.137 (28.9) .625 (15.9) are indicated in paren-
18 19 .796 (20.2) 2.330 (59.2) 1.337 (34.0) .625 (15.9) theses.
20 21 .796 (20.2) 2.330 (59.2) 1.337 (34.0) .625 (15.9) 3. When maximum entry
22 23 .696 (17.7) 2.480 (63.0) 1.337 (34.0) .750 (19.1) (page 21) is exceeded,
24 25 .696 (17.7) 2.480 (63.0) 1.337 (34.0) .750 (19.1) Style 2 will be supplied
(not available for Func-
tion C).
Dimensions F, G, H, & J
will not apply. Please
consult factory.
4. See Shrink Boot Refer-
TABLE V: CABLE ENTRY/SHRINK BOOT/DIMENSIONS ence Information (page
Dash N P Cable Entry Shrink 40).
No. Max Max Max Boot 5. Angular function "C",
01 .448 (11.4) .781 (19.8) .125 (3.2) n/a low-profile split elbow,
02 .515 (13.1) .968 (24.6) .250 (6.4) 770-001S103 not available with "S"
03 .640 (16.3) 1.046 (26.6) .375 (9.5) 770-001S103 connector designator.
04 .765 (19.4) 1.156 (29.4) .500 (12.7) 770-001S104
05 .920 (23.4) 1.219 (31.0) .625 (15.9) 770-001S104
06 1.015 (25.8) 1.343 (34.1) .750 (19.1) 770-001S105 TABLE II - STANDARD FINISHES
07 1.140 (29.0) 1.469 (37.3) .875 (22.2) 770-001S106 GLENAIR
08 1.265 (32.1) 1.594 (40.5) 1.000 (25.4) 770-001S106 SYMBOL FINISH
Cadmium Plate, Olive Drab
B
09 1.432 (36.4) 1.719 (43.7) 1.125 (28.6) 770-001S107 M Electroless Nickel
10 1.515 (38.5) 1.844 (46.8) 1.250 (31.8) 770-001S107 NF Cadmium Plate, Olive Drab Over
Electroless Nickel
See Inside Back Cover for Complete Finish
Information and Additional Finish Options
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 15 E-Mail: sales@glenair.com
