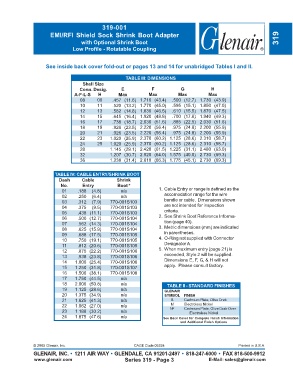

Page 75 - Circular Connector Backshells and Accessories

319-001
EMI/RFI Shield Sock Shrink Boot Adapter 319
with Optional Shrink Boot
Low Profile - Rotatable Coupling

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .457 (11.6) 1.710 (43.4) .500 (12.7) 1.730 (43.9)
10 11 .520 (13.2) 1.770 (45.0) .595 (15.1) 1.850 (47.0)
12 13 .582 (14.8) 1.830 (46.5) .610 (15.5) 1.870 (47.5)
14 15 .645 (16.4) 1.920 (48.8) .700 (17.8) 1.940 (49.3)
16 17 .738 (18.7) 2.030 (51.6) .885 (22.5) 2.030 (51.6)
18 19 .926 (23.5) 2.220 (56.4) .975 (24.8) 2.200 (55.9)
20 21 .926 (23.5) 2.220 (56.4) .975 (24.8) 2.200 (55.9)
22 23 1.020 (25.9) 2.370 (60.2) 1.125 (28.6) 2.310 (58.7)
24 25 1.020 (25.9) 2.370 (60.2) 1.125 (28.6) 2.310 (58.7)
28 1.145 (29.1) 2.420 (61.5) 1.225 (31.1) 2.480 (63.0)
32 1.207 (30.7) 2.520 (64.0) 1.575 (40.0) 2.730 (69.3)
36 1.238 (31.4) 2.610 (66.3) 1.775 (45.1) 2.730 (69.3)

TABLE IV: CABLE ENTRY/SHRINK BOOT
Dash Cable Shrink
No. Entry Boot *
01 .188 (4.8) n/a 1. Cable Entry or range is defined as the
02 .250 (6.4) n/a accomodation range for the wire
03 .312 (7.9) 770-001S103 bundle or cable. Dimensions shown
04 .375 (9.5) 770-001S103 are not intended for inspection
05 .438 (11.1) 770-001S103 criteria.
06 .500 (12.7) 770-001S104 2. See Shrink Boot Reference Informa-
07 .562 (14.3) 770-001S104 tion (page 40).
08 .625 (15.9) 770-001S104 3. Metric dimensions (mm) are indicated
09 .688 (17.5) 770-001S105 in parentheses.
10 .750 (19.1) 770-001S105 4. O-Ring not supplied with Connector
11 .812 (20.6) 770-001S105 Designator A.
12 .875 (22.2) 770-001S106 5. When maximum entry (page 21) is
13 .938 (23.8) 770-001S106 exceeded, Style 2 will be supplied.
14 1.000 (25.4) 770-001S106 Dimensions E, F, G, & H will not
15 1.250 (31.8) 770-001S107 apply. Please consult factory.
16 1.500 (38.1) 770-001S108
17 1.750 (44.5) n/a
18 2.000 (50.8) n/a TABLE II - STANDARD FINISHES
19 1.125 (28.6) n/a GLENAIR
20 1.375 (34.9) n/a SYMBOL FINISH
21 1.625 (41.3) n/a B Cadmium Plate, Olive Drab
22 1.062 (27.0) n/a M Electroless Nickel
23 1.188 (30.2) n/a NF Cadmium Plate, Olive Drab Over
Electroless Nickel
24 1.875 (47.6) n/a See Back Cover for Complete Finish Information
and Additional Finish Options

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 319 - Page 3 E-Mail: sales@glenair.com
