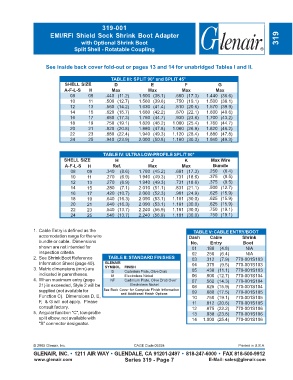

Page 79 - Circular Connector Backshells and Accessories

319-001
EMI/RFI Shield Sock Shrink Boot Adapter 319
with Optional Shrink Boot
Split Shell - Rotatable Coupling

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: SPLIT 90° and SPLIT 45°
SHELL SIZE D E F G
A-F-L-S H Max Max Max Max
08 09 .440 (11.2) 1.500 (38.1) .680 (17.3) 1.440 (36.6)
10 11 .500 (12.7) 1.560 (39.6) .750 (19.1) 1.500 (38.1)
12 13 .560 (14.2) 1.630 (41.4) .810 (20.6) 1.570 (39.9)
14 15 .620 (15.7) 1.660 (42.2) .870 (22.1) 1.600 (40.6)
16 17 .680 (17.3) 1.760 (44.7) .930 (23.6) 1.700 (43.2)
18 19 .750 (19.1) 1.820 (46.2) 1.000 (25.4) 1.760 (44.7)
20 21 .820 (20.8) 1.880 (47.8) 1.060 (26.9) 1.820 (46.2)
22 23 .880 (22.4) 1.940 (49.3) 1.120 (28.4) 1.880 (47.8)
24 25 .940 (23.9) 2.000 (50.8) 1.180 (30.3) 1.940 (49.3)

TABLE IV: ULTRA LOW-PROFILE SPLIT 90°
SHELL SIZE H J K Max Wire
A-F-L-S H Ref. Max Max Bundle
08 09 .340 (8.6) 1.780 (45.2) .681 (17.3) .250 (6.4)
10 11 .270 (6.9) 1.940 (49.3) .731 (18.6) .375 (9.5)
12 13 .270 (6.9) 1.940 (49.3) .731 (18.6) .375 (9.5)
14 15 .280 (7.1) 2.010 (51.1) .831 (21.1) .500 (12.7)
16 17 .420 (10.7) 2.060 (52.3) .981 (24.9) .625 (15.9)
18 19 .640 (16.3) 2.090 (53.1) 1.181 (30.0) .625 (15.9)
20 21 .640 (16.3) 2.090 (53.1) 1.181 (30.0) .625 (15.9)
22 23 .540 (13.7) 2.240 (56.9) 1.181 (30.0) .750 (19.1)
24 25 .540 (13.7) 2.240 (56.9) 1.181 (30.0) .750 (19.1)

1. Cable Entry is defined as the TABLE V: CABLE ENTRY/BOOT
accomodation range for the wire Dash Cable Shrink
bundle or cable. Dimensions No. Entry Boot
shown are not intended for 01 .188 (4.8) N/A
inspection criteria. 02 .250 (6.4) N/A
2. See Shrink Boot Reference TABLE II: STANDARD FINISHES 03 .312 (7.9) 770-001S103
Information Sheet (page 40). GLENAIR 04 .375 (9.5) 770-001S103
3. Metric dimensions (mm) are SYMBOL FINISH 05 .438 (11.1) 770-001S103
indicated in parentheses. B Cadmium Plate, Olive Drab 06 .500 (12.7) 770-001S104
M
Electroless Nickel
4. When maximum entry (page NF Cadmium Plate, Olive Drab Over 07 .562 (14.3) 770-001S104
21) is exceeded, Style 2 will be Electroless Nickel 08 .625 (15.9) 770-001S104
supplied (not available for See Back Cover for Complete Finish Information 09 .688 (17.5) 770-001S105
Function C). Dimensions D, E, and Additional Finish Options 10 .750 (19.1) 770-001S105
F, & G will not apply. Please 11 .812 (20.6) 770-001S105
consult factory. 12 .875 (22.2) 770-001S106
5. Angular function "C", low-profile 13 .938 (23.8) 770-001S106
split elbow, not available with 14 1.000 (25.4) 770-001S106
"S" connector designator.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 319 - Page 7 E-Mail: sales@glenair.com
