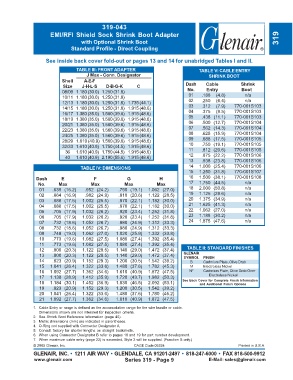

Page 81 - Circular Connector Backshells and Accessories

319-043
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot 319
Standard Profile - Direct Coupling

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: FRONT ADAPTER TABLE V: CABLE ENTRY
J Max - Conn. Designator SHRINK BOOT
Shell A-E-F
Size J-H-L-S D-B-G-K C Dash Cable Shrink
08/09 1.180 (30.0) 1.250 (31.8) No. Entry Boot
10/11 1.180 (30.0) 1.250 (31.8) 01 .188 (4.8) n/a
12/13 1.180 (30.0) 1.250 (31.8) 1.735 (44.1) 02 .250 (6.4) n/a
14/15 1.180 (30.0) 1.250 (31.8) 1.915 (48.6) 03 .312 (7.9) 770-001S103
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 04 .375 (9.5) 770-001S103
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 05 .438 (11.1) 770-001S103
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 06 .500 (12.7) 770-001S104
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 07 .562 (14.3) 770-001S104
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 08 .625 (15.9) 770-001S104
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 09 .688 (17.5) 770-001S105
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 10 .750 (19.1) 770-001S105
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 11 .812 (20.6) 770-001S105
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) 12 .875 (22.2) 770-001S106
13 .938 (23.8) 770-001S106
TABLE IV: DIMENSIONS 14 1.000 (25.4) 770-001S106
15 1.250 (31.8) 770-001S107
Dash E F G H 16 1.500 (38.1) 770-001S108
No. Max Max Max Max 17 1.750 (44.5) n/a
01 .639 (16.2) .952 (24.2) .750 (19.1) 1.062 (27.0) 18 2.000 (50.8) n/a
02 .664 (16.9) .982 (24.9) .810 (20.6) 1.122 (28.5) 19 1.125 (28.6) n/a
03 .688 (17.5) 1.002 (25.5) .870 (22.1) 1.182 (30.0) 20 1.375 (34.9) n/a
04 .688 (17.5) 1.002 (25.5) .870 (22.1) 1.182 (30.0) 21 1.625 (41.3) n/a
05 .705 (17.9) 1.032 (26.2) .920 (23.4) 1.252 (31.8) 22 1.062 (27.0) n/a
06 .705 (17.9) 1.032 (26.2) .920 (23.4) 1.252 (31.8) 23 1.188 (30.2) n/a
07 .732 (18.6) 1.052 (26.7) .980 (24.9) 1.312 (33.3) 24 1.875 (47.6) n/a
08 .732 (18.6) 1.052 (26.7) .980 (24.9) 1.312 (33.3)
09 .748 (19.0) 1.062 (27.0) 1.020 (25.9) 1.332 (33.8)
10 .773 (19.6) 1.082 (27.5) 1.080 (27.4) 1.392 (35.4)
11 .773 (19.6) 1.082 (27.5) 1.080 (27.4) 1.392 (35.4)
12 .800 (20.3) 1.122 (28.5) 1.140 (29.0) 1.472 (37.4) TABLE II: STANDARD FINISHES
13 .800 (20.3) 1.122 (28.5) 1.140 (29.0) 1.472 (37.4) GLENAIR FINISH
SYMBOL
14 .823 (20.9) 1.152 (29.3) 1.200 (30.5) 1.542 (39.2) B Cadmium Plate, Olive Drab
15 1.041 (26.4) 1.322 (33.6) 1.480 (37.6) 1.782 (45.3) M Electroless Nickel
16 1.092 (27.7) 1.362 (34.6) 1.610 (40.9) 1.872 (47.5) NF Cadmium Plate, Olive Drab Over
17 1.138 (28.9) 1.412 (35.9) 1.720 (43.7) 1.982 (50.3) Electroless Nickel
18 1.184 (30.1) 1.452 (36.9) 1.830 (46.5) 2.092 (53.1) See Back Cover for Complete Finish Information
and Additional Finish Options
19 .823 (20.9) 1.152 (29.3) 1.200 (30.5) 1.542 (39.2)
20 1.041 (26.4) 1.322 (33.6) 1.480 (37.6) 1.780 (45.2)
21 1.092 (27.7) 1.362 (34.6) 1.610 (40.9) 1.872 (47.5)

1. Cable Entry or range is defined as the accomodation range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
2. See Shrink Boot Reference Information (page 40).
3. Metric dimensions (mm) are indicated in parentheses.
4. O-Ring not supplied with Connector Designator A.
5. Consult factory for shorter lengths on straight backshells.
6. When using Connector Designator B refer to pages 18 and 19 for part number development.
7. When maximum cable entry (page 22) is exceeded, Style 2 will be supplied. (Function S only.)
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 319 - Page 9 E-Mail: sales@glenair.com
