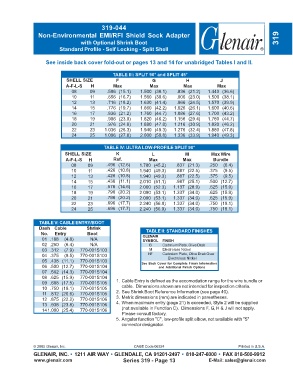

319-044
Non-Environmental EMI/RFI Shield Sock Adapter 319
with Optional Shrink Boot
Standard Profile - Self Locking - Split Shell

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: SPLIT 90° and SPLIT 45°
SHELL SIZE F G H J
A-F-L-S H Max Max Max Max
08 09 .596 (15.1) 1.500 (38.1) .836 (21.2) 1.440 (36.6)
10 11 .656 (16.7) 1.560 (39.6) .906 (23.0) 1.500 (38.1)
12 13 .716 (18.2) 1.630 (41.4) .966 (24.5) 1.570 (39.9)
14 15 .776 (19.7) 1.660 (42.2) 1.026 (26.1) 1.600 (40.6)
16 17 .836 (21.2) 1.760 (44.7) 1.086 (27.6) 1.700 (43.2)
18 19 .906 (23.0) 1.820 (46.2) 1.156 (29.4) 1.760 (44.7)
20 21 .976 (24.8) 1.880 (47.8) 1.216 (30.9) 1.820 (46.2)
22 23 1.036 (26.3) 1.940 (49.3) 1.276 (32.4) 1.880 (47.8)
24 25 1.096 (27.8) 2.000 (50.8) 1.336 (33.9) 1.940 (49.3)

TABLE IV: ULTRA LOW-PROFILE SPLIT 90°
SHELL SIZE K L M Max Wire
A-F-L-S H Ref. Max Max Bundle
08 09 .496 (12.6) 1.780 (45.2) .837 (21.3) .250 (6.4)
10 11 .426 (10.8) 1.940 (49.3) .887 (22.5) .375 (9.5)
12 13 .426 (10.8) 1.940 (49.3) .887 (22.5) .375 (9.5)
14 15 .436 (11.1) 2.010 (51.1) .987 (25.1) .500 (12.7)
16 17 .576 (14.6) 2.060 (52.3) 1.137 (28.9) .625 (15.9)
18 19 .796 (20.2) 2.090 (53.1) 1.337 (34.0) .625 (15.9)
20 21 .796 (20.2) 2.090 (53.1) 1.337 (34.0) .625 (15.9)
22 23 .696 (17.7) 2.240 (56.9) 1.337 (34.0) .750 (19.1)
24 25 .696 (17.7) 2.240 (56.9) 1.337 (34.0) .750 (19.1)

TABLE V: CABLE ENTRY/BOOT
Dash Cable Shrink
TABLE II: STANDARD FINISHES
No. Entry Boot GLENAIR
01 .188 (4.8) N/A SYMBOL FINISH
02 .250 (6.4) N/A B Cadmium Plate, Olive Drab
03 .312 (7.9) 770-001S103 M Electroless Nickel
04 .375 (9.5) 770-001S103 NF Cadmium Plate, Olive Drab Over
Electroless Nickel
05 .438 (11.1) 770-001S103 See Back Cover for Complete Finish Information
06 .500 (12.7) 770-001S104 and Additional Finish Options
07 .562 (14.3) 770-001S104
08 .625 (15.9) 770-001S104
09 .688 (17.5) 770-001S105 1. Cable Entry is defined as the accomodation range for the wire bundle or
10 .750 (19.1) 770-001S105 cable. Dimensions shown are not intended for inspection criteria.
11 .812 (20.6) 770-001S105 2. See Shrink Boot Reference Information (see page 40).
12 .875 (22.2) 770-001S106 3. Metric dimensions (mm) are indicated in parentheses.
13 .938 (23.8) 770-001S106 4. When maximum entry (page 21) is exceeded, Style 2 will be supplied
14 1.000 (25.4) 770-001S106 (not available in Function C). Dimensions F, G, H & J will not apply.
Please consult factory.
5. Angular function "C", low-profile split elbow, not available with "S"
connector designator.
