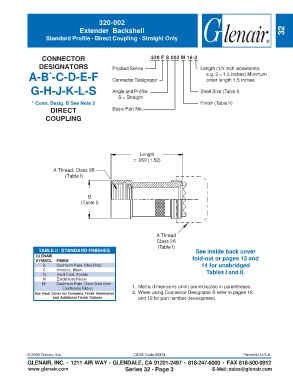

320-002
Extender Backshell 32
Standard Profile - Direct Coupling - Straight Only

CONNECTOR 320 F S 002 M 16-3
DESIGNATORS Product Series Length (1/2 inch increments:
A-B -C-D-E-F Connector Designator e.g. 3 = 1.5 inches) Minimum
*
order length 1.5 inches
G-H-J-K-L-S Angle and Profile Shell Size (Table I)

S = Straight
* Conn. Desig. B See Note 2 Finish (Table II)
DIRECT Basic Part No.
COUPLING

Length
± .060 (1.52)

A Thread, Class 2B
(Table I)

B
(Table I)

A Thread
Class 2A
(Table I)
TABLE II : STANDARD FINISHES See inside back cover
GLENAIR fold-out or pages 13 and
SYMBOL FINISH
B Cadmium Plate, Olive Drab 14 for unabridged
C Anodize, Black Tables I and II.
G Hard Coat, Anodic
M Electroless Nickel
NF Cadmium Plate, Olive Drab Over
Electroless Nickel 1. Metric dimensions (mm) are indicated in parentheses.
See Back Cover for Complete Finish Information 2. When using Connector Designator B refer to pages 18
and Additional Finish Options and 19 for part number development.
