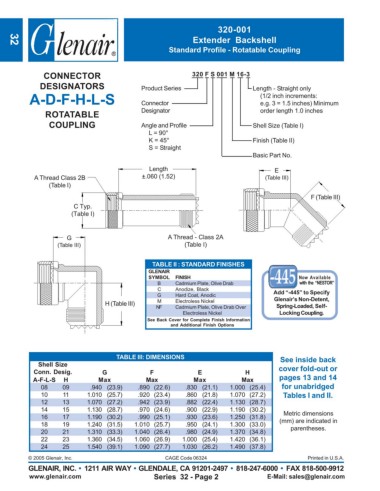

Page 88 - Circular Connector Backshells and Accessories

320-001
Extender Backshell
32
Standard Profile - Rotatable Coupling

CONNECTOR 320 F S 001 M 16-3
DESIGNATORS Product Series Length - Straight only
A-D-F-H-L-S Connector (1/2 inch increments:
e.g. 3 = 1.5 inches) Minimum
ROTATABLE Designator order length 1.0 inches
COUPLING Angle and Profile Shell Size (Table I)
L = 90°
K = 45° Finish (Table II)
S = Straight
Basic Part No.
Length E
A Thread Class 2B ±.060 (1.52) (Table III)
(Table I)
F (Table III)
C Typ.
(Table I)

G A Thread - Class 2A
(Table III) (Table I)

TABLE II : STANDARD FINISHES
GLENAIR
SYMBOL FINISH Now Available
B Cadmium Plate, Olive Drab with the “NESTOR”
C Anodize, Black
G Hard Coat, Anodic Add “-445” to Specify
H (Table III) M Electroless Nickel Glenair’s Non-Detent,
NF Cadmium Plate, Olive Drab Over Spring-Loaded, Self-
Electroless Nickel Locking Coupling.
See Back Cover for Complete Finish Information
and Additional Finish Options

TABLE III: DIMENSIONS See inside back
Shell Size
Conn. Desig. G F E H cover fold-out or
A-F-L-S H Max Max Max Max pages 13 and 14
08 09 .940 (23.9) .890 (22.6) .830 (21.1) 1.000 (25.4) for unabridged
10 11 1.010 (25.7) .920 (23.4) .860 (21.8) 1.070 (27.2) Tables I and II.
12 13 1.070 (27.2) .942 (23.9) .882 (22.4) 1.130 (28.7)
14 15 1.130 (28.7) .970 (24.6) .900 (22.9) 1.190 (30.2)
16 17 1.190 (30.2) .990 (25.1) .930 (23.6) 1.250 (31.8) Metric dimensions
18 19 1.240 (31.5) 1.010 (25.7) .950 (24.1) 1.300 (33.0) (mm) are indicated in
20 21 1.310 (33.3) 1.040 (26.4) .980 (24.9) 1.370 (34.8) parentheses.
22 23 1.360 (34.5) 1.060 (26.9) 1.000 (25.4) 1.420 (36.1)
24 25 1.540 (39.1) 1.090 (27.7) 1.030 (26.2) 1.490 (37.8)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 32 - Page 2 E-Mail: sales@glenair.com
