Page 84 - Circular Connector Backshells and Accessories

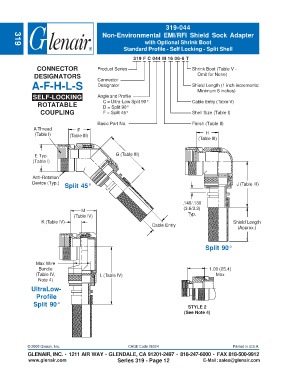

319-044
Non-Environmental EMI/RFI Shield Sock Adapter
with Optional Shrink Boot
319
Standard Profile - Self Locking - Split Shell
319 F C 044 M 16 06-6 T

CONNECTOR Product Series Shrink Boot (Table V -
DESIGNATORS Connector Omit for None)
A-F-H-L-S Designator Shield Length (1 inch increments:
Minimum 6 inches)
SELF-LOCKING Angle and Profile
ROTATABLE C = Ultra-Low Split 90° Cable Entry (Table V)
D = Split 90°
COUPLING F = Split 45° Shell Size (Table I)

Basic Part No. Finish (Table II)
A Thread F
(Table I) (Table III) H
(Table III)

E Typ. G (Table III)
(Table I)

Anti-Rotation
Device (Typ.) J (Table III)
Split 45°

.140/.130
M (3.6/3.3)
(Table IV) Typ.
K (Table IV) Shield Length
Cable Entry
(Approx.)

Split 90°

Max Wire
Bundle 1.00 (25.4)
(Table IV, L (Table IV) Max
Note 4)
UltraLow-
Profile
Split 90° STYLE 2

(See Note 4)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 319 - Page 12 E-Mail: sales@glenair.com
