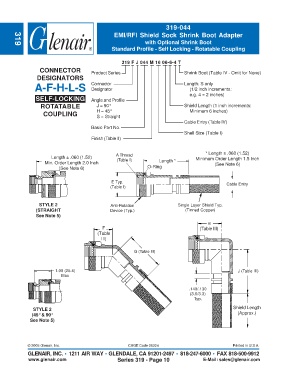

Page 82 - Circular Connector Backshells and Accessories

319-044
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
319
Standard Profile - Self Locking - Rotatable Coupling

319 F J 044 M 16 06-6-4 T
CONNECTOR Product Series Shrink Boot (Table IV - Omit for None)
DESIGNATORS
A-F-H-L-S Connector Length: S only
(1/2 inch increments:
Designator
e.g. 4 = 2 inches)
SELF-LOCKING Angle and Profile
ROTATABLE J = 90° Shield Length (1 inch increments:
COUPLING H = 45° Minimum 6 inches)
S = Straight
Cable Entry (Table IV)
Basic Part No.
Shell Size (Table I)
Finish (Table II)

* Length ± .060 (1.52)
Length ± .060 (1.52) A Thread Minimum Order Length 1.5 Inch
Min. Order Length 2.0 Inch (Table I) Length * (See Note 6)
(See Note 6) O-Ring

E Typ. Cable Entry
(Table I)

STYLE 2 Anti-Rotation Single Layer Shield Typ.
(STRAIGHT Device (Typ.) (Tinned Copper)
See Note 5)
H
F (Table III)
(Table
III)

G (Table III)

1.00 (25.4) J (Table III)
Max

.140/.130
(3.6/3.3)
Typ.

STYLE 2 Shield Length
(45° & 90° (Approx.)
See Note 5)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 319 - Page 10 E-Mail: sales@glenair.com
