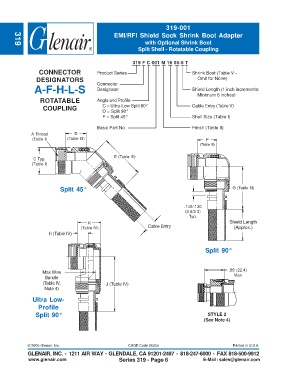

Page 78 - Circular Connector Backshells and Accessories

319-001
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
319
Split Shell - Rotatable Coupling

319 F C 001 M 16 06-6 T
CONNECTOR Product Series Shrink Boot (Table V -
DESIGNATORS Connector Omit for None)
A-F-H-L-S Designator Shield Length (1 inch increments:
Minimum 6 inches)
ROTATABLE Angle and Profile
COUPLING C = Ultra-Low Split 90° Cable Entry (Table V)
D = Split 90°
F = Split 45° Shell Size (Table I)

Basic Part No. Finish (Table II)
A Thread D
(Table I) (Table III) F
(Table III)

C Typ. E (Table III)
(Table I)

Split 45° G (Table III)

.140/.130
(3.6/3.3)
Typ.
K Shield Length
(Table IV) Cable Entry (Approx.)
H (Table IV)

Split 90°

Max Wire .88 (22.4)
Bundle Max
(Table IV, J (Table IV)
Note 4)

Ultra Low-
Profile
Split 90° STYLE 2
(See Note 4)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 319 - Page 6 E-Mail: sales@glenair.com
