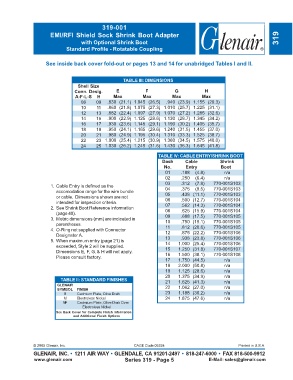

Page 77 - Circular Connector Backshells and Accessories
P. 77

319-001
                      EMI/RFI Shield Sock Shrink Boot Adapter                                                        319
                                   with Optional Shrink Boot
                             Standard Profile - Rotatable Coupling


                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.


                                                     TABLE III: DIMENSIONS
                                  Shell Size
                                Conn. Desig.      E           F           G            H
                                A-F-L-S   H     Max          Max         Max         Max
                                   08    09   .830 (21.1) 1.045 (26.5)  .940 (23.9) 1.155 (29.3)
                                   10    11   .860 (21.8) 1.075 (27.3)  1.010 (25.7) 1.225 (31.1)
                                   12    13   .882 (22.4) 1.097 (27.9)  1.070 (27.2) 1.285 (32.6)
                                   14    15   .900 (22.9) 1.125 (28.6)  1.130 (28.7) 1.345 (34.2)
                                   16    17   .930 (23.6) 1.145 (29.1)  1.190 (30.2) 1.405 (35.7)
                                   18    19   .950 (24.1) 1.165 (29.6)  1.240 (31.5) 1.455 (37.0)
                                   20    21   .980 (24.9) 1.195 (30.4)  1.310 (33.3) 1.525 (38.7)
                                   22    23 1.000 (25.4) 1.215 (30.9)  1.360 (34.5) 1.575 (40.0)
                                   24    25 1.030 (26.2) 1.245 (31.6)  1.430 (36.3) 1.645 (41.8)

                                                                   TABLE IV: CABLE ENTRY/SHRINK BOOT
                                                                     Dash     Cable          Shrink
                                                                      No.      Entry         Boot
                                                                      01     .188  (4.8)       n/a
                                                                      02     .250  (6.4)       n/a
                                                                      03     .312  (7.9)  770-001S103
                      1. Cable Entry is defined as the
                         accomodation range for the wire bundle       04     .375  (9.5)  770-001S103
                                                                                          770-001S103
                                                                      05
                                                                             .438 (11.1)
                         or cable.  Dimensions shown are not
                         intended for inspection criteria.            06     .500 (12.7)  770-001S104
                      2. See Shrink Boot Reference Information        07     .562 (14.3)  770-001S104
                                                                      08
                         (page 40).                                          .625 (15.9)  770-001S104
                      3. Metric dimensions (mm) are indicated in      09     .688 (17.5)  770-001S105
                                                                             .750 (19.1)
                                                                                          770-001S105
                                                                      10
                         parentheses.
                                                                      11
                      4. O-Ring not supplied with Connector           12     .812 (20.6)  770-001S105
                                                                                          770-001S106
                                                                             .875 (22.2)
                         Designator A.                                13
                      5. When maximum entry (page 21) is                     .938 (23.8)  770-001S106
                         exceeded, Style 2 will be supplied.          14    1.000 (25.4)  770-001S106
                                                                      15
                                                                            1.250 (31.8)
                                                                                          770-001S107
                         Dimensions E, F, G, & H will not apply.
                         Please consult factory.                      16    1.500 (38.1)  770-001S108
                                                                      17    1.750 (44.5)       n/a
                                                                      18    2.000 (50.8)       n/a
                                                                      19    1.125 (28.6)       n/a
                                                                      20    1.375 (34.9)       n/a
                          TABLE II: STANDARD FINISHES                 21    1.625 (41.3)       n/a
                         GLENAIR                                      22    1.062 (27.0)       n/a
                         SYMBOL  FINISH
                            B    Cadmium Plate, Olive Drab            23    1.188 (30.2)       n/a
                            M    Electroless Nickel                   24    1.875 (47.6)       n/a
                           NF    Cadmium Plate, Olive Drab Over
                                   Electroless Nickel
                         See Back Cover for Complete Finish Information
                                and Additional Finish Options
               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 319 - Page 5                E-Mail: sales@glenair.com
