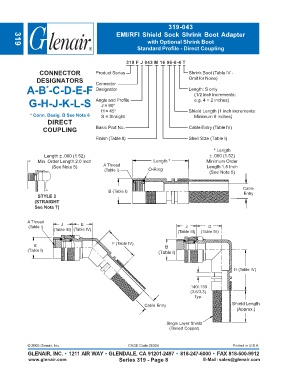

Page 80 - Circular Connector Backshells and Accessories

319-043
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
Standard Profile - Direct Coupling
319

319 F J 043 M 16 06-6-4 T
CONNECTOR Product Series Shrink Boot (Table IV -
DESIGNATORS Connector Omit for None)
A-B -C-D-E-F Designator Length: S only
*
(1/2 inch increments:
G-H-J-K-L-S Angle and Profile e.g. 4 = 2 inches)
J = 90°
H = 45° Shield Length (1 inch increments:
* Conn. Desig. B See Note 6 S = Straight Minimum 6 inches)
DIRECT
COUPLING Basic Part No. Cable Entry (Table IV)
Finish (Table II) Shell Size (Table I)

* Length
Length ± .060 (1.52) ± .060 (1.52)
Min. Order Length 2.0 Inch Length * Minimum Order
(See Note 5) A Thread Length 1.5 Inch
(Table I) O-Ring (See Note 5)

Cable
B (Table I) Entry
STYLE 2
(STRAIGHT
See Note 7)

A Thread J E
(Table I) J G
(Table III) (Table IV)
(Table III) (Table IV)

B F (Table IV) B
(Table I) (Table I)

H (Table IV)

.140/.130
(3.6/3.3)
Typ.
Cable Entry Shield Length
(Approx.)

Single Layer Shield
(Tinned Copper)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 319 - Page 8 E-Mail: sales@glenair.com
