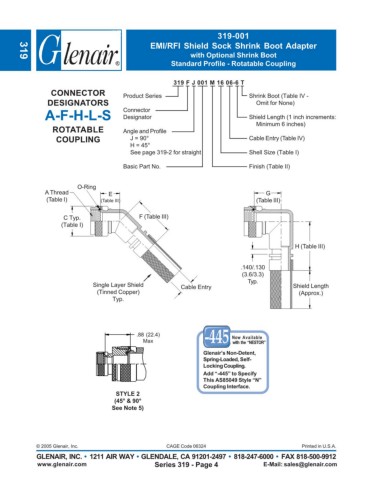

319-001
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
319
Standard Profile - Rotatable Coupling

319 F J 001 M 16 06-6 T
CONNECTOR Product Series Shrink Boot (Table IV -
DESIGNATORS Omit for None)
A-F-H-L-S Connector Shield Length (1 inch increments:
Designator
Minimum 6 inches)
ROTATABLE Angle and Profile
COUPLING J = 90° Cable Entry (Table IV)
H = 45°
See page 319-2 for straight Shell Size (Table I)

Basic Part No. Finish (Table II)

O-Ring
A Thread E G
(Table I) (Table III) (Table III)

C Typ. F (Table III)
(Table I)

H (Table III)

.140/.130
(3.6/3.3)
Typ.
Single Layer Shield Cable Entry Shield Length
(Tinned Copper) (Approx.)
Typ.

.88 (22.4) Now Available
Max with the “NESTOR”

Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
Add “-445” to Specify
This AS85049 Style “N”
Coupling Interface.
STYLE 2
(45° & 90°
See Note 5)
