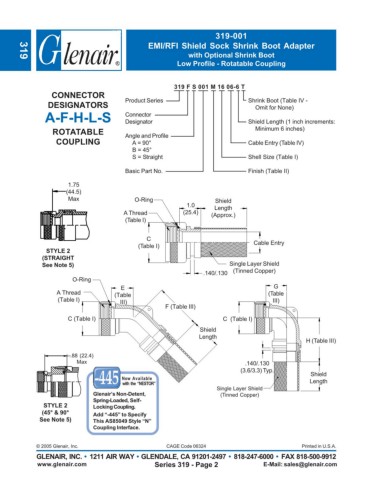

319-001
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
319
Low Profile - Rotatable Coupling

319 F S 001 M 16 06-6 T
CONNECTOR
DESIGNATORS Product Series Shrink Boot (Table IV -
Omit for None)
A-F-H-L-S Connector Shield Length (1 inch increments:
Designator
ROTATABLE Angle and Profile Minimum 6 inches)
COUPLING A = 90° Cable Entry (Table IV)
B = 45°
S = Straight Shell Size (Table I)

Basic Part No. Finish (Table II)
1.75
(44.5)
Max O-Ring Shield
1.0 Length
A Thread (25.4) (Approx.)
(Table I)

C
(Table I) Cable Entry
STYLE 2
(STRAIGHT
See Note 5) Single Layer Shield
.140/.130 (Tinned Copper)
O-Ring
E G
A Thread (Table (Table
(Table I) III) III)
F (Table III)

C (Table I) C (Table I)
Shield
Length
H (Table III)

.88 (22.4)
Max .140/.130
(3.6/3.3) Typ. Shield
Now Available
with the “NESTOR” Length
Single Layer Shield
Glenair’s Non-Detent, (Tinned Copper)
Spring-Loaded, Self-
STYLE 2 Locking Coupling.
(45° & 90° Add “-445” to Specify
See Note 5) This AS85049 Style “N”
Coupling Interface.
