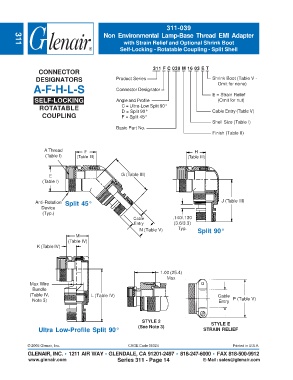

311-039
Non Environmental Lamp-Base Thread EMI Adapter
with Strain Relief and Optional Shrink Boot
311
Self-Locking - Rotatable Coupling - Split Shell

311 F C 039 M 16 03 E T
CONNECTOR
DESIGNATORS Product Series Shrink Boot (Table V -
Omit for none)
A-F-H-L-S Connector Designator
E = Strain Relief
SELF-LOCKING Angle and Profile (Omit for nut)
ROTATABLE C = Ultra-Low Split 90° Cable Entry (Table V)
D = Split 90°
COUPLING F = Split 45°
Shell Size (Table I)
Basic Part No.
Finish (Table II)

A Thread F H
(Table I) (Table III) (Table III)

E G (Table III)
(Table I)

Anti-Rotation Split 45° J (Table III)
Device
(Typ.)
Cable .140/.130
Entry (3.6/3.3)
N (Table V) Typ. Split 90°
M
(Table IV)
K (Table IV)

1.00 (25.4)
Max
Max Wire
Bundle
(Table IV, L (Table IV) Cable
Note 3) Entry P (Table V)

STYLE 2 STYLE E
Ultra Low-Profile Split 90° (See Note 3) STRAIN RELIEF
