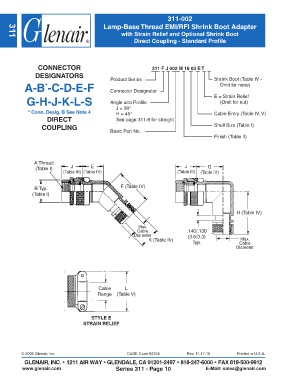

Page 66 - Circular Connector Backshells and Accessories

311-002
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot
311
Direct Coupling - Standard Profile

CONNECTOR 311 F J 002 M 16 03 E T

DESIGNATORS Product Series Shrink Boot (Table IV -
A-B -C-D-E-F Connector Designator Omit for none)
*

G-H-J-K-L-S Angle and Profile E = Strain Relief
(Omit for nut)
J = 90°
* Conn. Desig. B See Note 4 H = 45° Cable Entry (Table IV, V)
DIRECT See page 311-8 for straight
COUPLING Shell Size (Table I)
Basic Part No.
Finish (Table II)

A Thread
(Table I) J E J G
(Table III) (Table IV) (Table III) (Table IV)

B Typ. F (Table IV)
(Table I)

H (Table IV)

Max.
Cable .140/.130
Diameter (3.6/3.3)
K (Table IV) Max.
Typ. Cable
Diameter

Cable L
Range (Table V)

STYLE E
STRAIN RELIEF

© 2005 Glenair, Inc. CAGE Code 06324 Rev. 11.17.16 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 10 E-Mail: sales@glenair.com
