P. 61

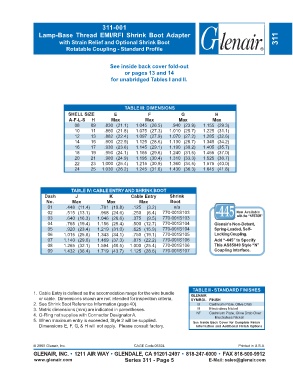

311-001
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot 311
Rotatable Coupling - Standard Profile
See inside back cover fold-out
or pages 13 and 14
for unabridged Tables I and II.
TABLE III: DIMENSIONS
SHELL SIZE E F G H
A-F-L-S H Max Max Max Max
08 09 .830 (21.1) 1.045 (26.5) .940 (23.9) 1.155 (29.3)
10 11 .860 (21.8) 1.075 (27.3) 1.010 (25.7) 1.225 (31.1)
12 13 .882 (22.4) 1.097 (27.9) 1.070 (27.2) 1.285 (32.6)
14 15 .900 (22.9) 1.125 (28.6) 1.130 (28.7) 1.345 (34.2)
16 17 .930 (23.6) 1.145 (29.1) 1.190 (30.2) 1.405 (35.7)
18 19 .950 (24.1) 1.165 (29.6) 1.240 (31.5) 1.455 (37.0)
20 21 .980 (24.9) 1.195 (30.4) 1.310 (33.3) 1.525 (38.7)
22 23 1.000 (25.4) 1.215 (30.9) 1.360 (34.5) 1.575 (40.0)
24 25 1.030 (26.2) 1.245 (31.6) 1.430 (36.3) 1.645 (41.8)
TABLE IV: CABLE ENTRY AND SHRINK BOOT
Dash J K Cable Entry Shrink
No. Max Max Max Boot
01 .448 (11.4) .781 (19.8) .125 (3.2) n/a
02 .515 (13.1) .968 (24.6) .250 (6.4) 770-001S103 Now Available
03 .640 (16.3) 1.046 (26.6) .375 (9.5) 770-001S103 with the “NESTOR”
04 .765 (19.4) 1.156 (29.4) .500 (12.7) 770-001S104 Glenair’s Non-Detent,
05 .920 (23.4) 1.219 (31.0) .625 (15.9) 770-001S104 Spring-Loaded, Self-
06 1.015 (25.8) 1.343 (34.1) .750 (19.1) 770-001S105 Locking Coupling.
07 1.140 (29.0) 1.469 (37.3) .875 (22.2) 770-001S106 Add “-445” to Specify
08 1.265 (32.1) 1.594 (40.5) 1.000 (25.4) 770-001S106 This AS85049 Style “N”
09 1.432 (36.4) 1.719 (43.7) 1.125 (28.6) 770-001S107 Coupling Interface.
TABLE II - STANDARD FINISHES
1. Cable Entry is defined as the accomodation range for the wire bundle GLENAIR
or cable. Dimensions shown are not intended for inspection criteria. SYMBOL FINISH
2. See Shrink Boot Reference Information (page 40). B Cadmium Plate, Olive Drab
3. Metric dimensions (mm) are indicated in parentheses. M Electroless Nickel
4. O-Ring not supplies with Connector Designator A. NF Cadmium Plate, Olive Drab Over
Electroless Nickel
5. When maximum entry is exceeded, Style 2 will be supplied. See Inside Back Cover for Complete Finish
Dimensions E, F, G, & H will not apply. Please consult factory. Information and Additional Finish Options
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 5 E-Mail: sales@glenair.com
