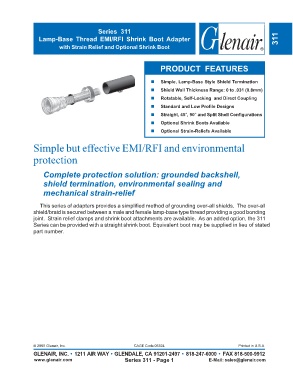

Page 57 - Circular Connector Backshells and Accessories

Series 311
Lamp-Base Thread EMI/RFI Shrink Boot Adapter 311
with Strain Relief and Optional Shrink Boot

PRODUCT FEATURES

Simple, Lamp-Base Style Shield Termination

Shield Wall Thickness Range: 0 to .031 (0.8mm)
Rotatable, Self-Locking and Direct Coupling
Standard and Low Profile Designs
Straight, 45°, 90° and Split Shell Configurations
Optional Shrink Boots Available
Optional Strain-Reliefs Available

Simple but effective EMI/RFI and environmental

protection

Complete protection solution: grounded backshell,
shield termination, environmental sealing and

mechanical strain-relief

This series of adapters provides a simplified method of grounding over-all shields. The over-all
shield/braid is secured between a male and female lamp-base type thread providing a good bonding
joint. Strain relief clamps and shrink boot attachments are available. As an added option, the 311
Series can be provided with a straight shrink boot. Equivalent boot may be supplied in lieu of stated
part number.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 1 E-Mail: sales@glenair.com
