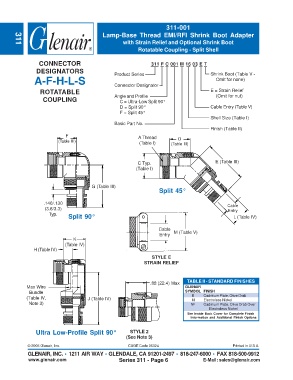

Page 62 - Circular Connector Backshells and Accessories

311-001
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot
311
Rotatable Coupling - Split Shell

CONNECTOR 311 F C 001 M 16 03 E T
DESIGNATORS Product Series Shrink Boot (Table V -
A-F-H-L-S Connector Designator Omit for none)

ROTATABLE E = Strain Relief
(Omit for nut)
COUPLING Angle and Profile
C = Ultra-Low Split 90°
D = Split 90° Cable Entry (Table V)
F = Split 45°
Shell Size (Table I)
Basic Part No.
Finish (Table II)
F A Thread
D
(Table III) (Table I) (Table III)

C Typ. E (Table III)
(Table I)

G (Table III)
Split 45°

.140/.130 Cable
(3.6/3.3) Entry
Typ. Split 90° L (Table IV)

Cable
Entry M (Table V)
K
(Table IV)
H (Table IV)
STYLE E
STRAIN RELIEF

.88 (22.4) Max TABLE II - STANDARD FINISHES
Max Wire GLENAIR
Bundle SYMBOL FINISH
B
(Table IV, J (Table IV) M Cadmium Plate, Olive Drab
Electroless Nickel
Note 3) NF Cadmium Plate, Olive Drab Over
Electroless Nickel
See Inside Back Cover for Complete Finish
Information and Additional Finish Options

Ultra Low-Profile Split 90° STYLE 2
(See Note 3)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 6 E-Mail: sales@glenair.com
