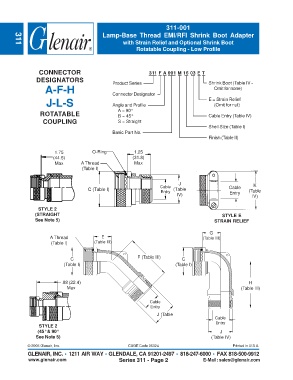

311-001
Lamp-Base Thread EMI/RFI Shrink Boot Adapter
with Strain Relief and Optional Shrink Boot
311
Rotatable Coupling - Low Profile

CONNECTOR 311 F A 001 M 16 03 E T
DESIGNATORS Product Series Shrink Boot (Table IV -
A-F-H Connector Designator Omit for none)

J-L-S Angle and Profile E = Strain Relief
(Omit for nut)
A = 90°
ROTATABLE B = 45° Cable Entry (Table IV)
COUPLING S = Straight
Shell Size (Table I)
Basic Part No.
Finish (Table II)

1.75 O-Ring 1.25
(44.5) (31.8)
Max A Thread Max
(Table I)

J
Cable Cable K
C (Table I) (Table (Table
Entry Entry
IV) IV)

STYLE 2
(STRAIGHT STYLE E
See Note 5) STRAIN RELIEF

G
A Thread E (Table III)
(Table I) (Table III)

C F (Table III) C
(Table I) (Table I)

.88 (22.4) H
Max (Table III)

Cable
Entry
J (Table IV)
Cable
Entry
STYLE 2
(45° & 90° J
See Note 5) (Table IV)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 311 - Page 2 E-Mail: sales@glenair.com
