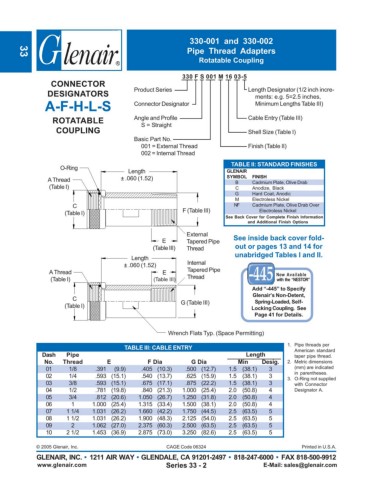

Page 92 - Circular Connector Backshells and Accessories

330-001 and 330-002
Pipe Thread Adapters
Rotatable Coupling
33

330 F S 001 M 16 03-5
CONNECTOR
DESIGNATORS Product Series Length Designator (1/2 inch incre-
ments: e.g. 5=2.5 inches,
A-F-H-L-S Connector Designator Minimum Lengths Table III)

ROTATABLE Angle and Profile Cable Entry (Table III)
S = Straight
COUPLING Shell Size (Table I)
Basic Part No.
001 = External Thread Finish (Table II)
002 = Internal Thread
TABLE II: STANDARD FINISHES
O-Ring
Length GLENAIR
A Thread ± .060 (1.52) SYMBOL FINISH
Cadmium Plate, Olive Drab
B
(Table I) C Anodize, Black
G Hard Coat, Anodic
M Electroless Nickel
C NF Cadmium Plate, Olive Drab Over
(Table I) F (Table III) Electroless Nickel
See Back Cover for Complete Finish Information
and Additional Finish Options
External
E Tapered Pipe See inside back cover fold-
(Table III) Thread out or pages 13 and 14 for
unabridged Tables I and II.
Length
± .060 (1.52) Internal
A Thread E Tapered Pipe Now Available
(Table I) (Table III) Thread with the “NESTOR”
Add “-445” to Specify
Glenair’s Non-Detent,
C Spring-Loaded, Self-
(Table I) G (Table III) Locking Coupling. See
Page 41 for Details.

Wrench Flats Typ. (Space Permitting)

1. Pipe threads per
TABLE III: CABLE ENTRY American standard
Dash Pipe Length taper pipe thread.
No. Thread E F Dia G Dia Min Desig. 2. Metric dimensions
01 1/8 .391 (9.9) .405 (10.3) .500 (12.7) 1.5 (38.1) 3 (mm) are indicated
in parentheses.
02 1/4 .593 (15.1) .540 (13.7) .625 (15.9) 1.5 (38.1) 3 3. O-Ring not supplied
03 3/8 .593 (15.1) .675 (17.1) .875 (22.2) 1.5 (38.1) 3 with Connector
04 1/2 .781 (19.8) .840 (21.3) 1.000 (25.4) 2.0 (50.8) 4 Designator A.
05 3/4 .812 (20.6) 1.050 (26.7) 1.250 (31.8) 2.0 (50.8) 4
06 1 1.000 (25.4) 1.315 (33.4) 1.500 (38.1) 2.0 (50.8) 4
07 1 1/4 1.031 (26.2) 1.660 (42.2) 1.750 (44.5) 2.5 (63.5) 5
08 1 1/2 1.031 (26.2) 1.900 (48.3) 2.125 (54.0) 2.5 (63.5) 5
09 2 1.062 (27.0) 2.375 (60.3) 2.500 (63.5) 2.5 (63.5) 5
10 2 1/2 1.453 (36.9) 2.875 (73.0) 3.250 (82.6) 2.5 (63.5) 5

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 33 - 2 E-Mail: sales@glenair.com
