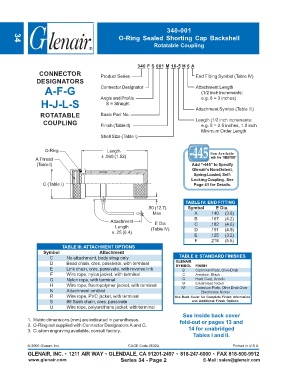

Page 96 - Circular Connector Backshells and Accessories

340-001
O-Ring Sealed Shorting Cap Backshell
Rotatable Coupling
34

340 F S 001 M 16-5 H 6 A
CONNECTOR Product Series End Fitting Symbol (Table IV)
DESIGNATORS
A-F-G Connector Designator Attachment Length
(1/2 inch increments:
H-J-L-S Angle and Profile e.g. 6 = 3 inches)
S = Straight

ROTATABLE Basic Part No. Attachment Symbol (Table III)
COUPLING Finish (Table II) Length (1/2 inch increments:
e.g. 5 = 2.5 inches, 1.0 inch
Minimum Order Length
Shell Size (Table I)

O-Ring Length Now Available
± .060 (1.52) with the “NESTOR”
A Thread
(Table I) Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See
C (Table I) Page 41 for Details.

TABLE IV: END FITTING
.50 (12.7) Symbol E Dia.
Max A .140 (3.6)
B .167 (4.2)
Attachment E Dia
Length (Table IV) C .182 (4.6)
± .25 (6.4) D .191 (4.9)
E .125 (3.2)
F .218 (5.5)
TABLE III: ATTACHMENT OPTIONS
Symbol Attachment
C No attachment, body strap only TABLE II: STANDARD FINISHES
D Bead chain, cres, passivate, with terminal GLENAIR FINISH
SYMBOL
E Link chain, cres, passivate, with reverse link B Cadmium Plate, Olive Drab
F Wire rope, nylon jacket, with terminal C Anodize, Black
G Nylon rope, with terminal G Hard Coat, Anodic
H Wire rope, fluoropolymer jacket, with terminal M Electroless Nickel
N Attachment omitted NF Cadmium Plate, Olive Drab Over
Electroless Nickel
R Wire rope, PVC jacket, with terminal See Back Cover for Complete Finish Information
S #8 Sash chain, cres, passivate and Additional Finish Options
U Wire rope, polyurethane jacket, with terminal
See inside back cover
1. Metric dimensions (mm) are indicated in parentheses. fold-out or pages 13 and
2. O-Ring not supplied with Connector Designators A and G.
3. Custom engraving available, consult factory. 14 for unabridged
Tables I and II.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 34 - Page 2 E-Mail: sales@glenair.com
