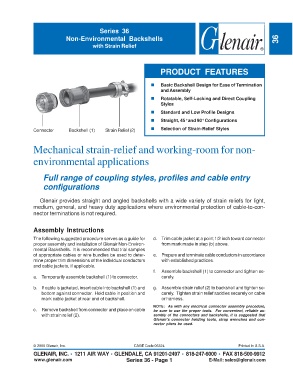

P. 99

Series 36
                             Non-Environmental Backshells                                                            36
                                        with Strain Relief





                                                                    PRODUCT  FEATURES


                                                                „ „ „ „ „  Basic Backshell Design for Ease of Termination
                                                                    and Assembly
                                                                „ „ „ „ „  Rotatable, Self-Locking and Direct Coupling
                                                                    Styles

                                                                „ „ „ „ „  Standard and Low Profile Designs
                                                                „ „ „ „ „  Straight, 45° and 90° Configurations
               Connector      Backshell (1)  Strain Relief (2)  „ „ „ „ „  Selection of Strain-Relief Styles


               Mechanical strain-relief and working-room for non-

               environmental applications



                   Full range of coupling styles, profiles and cable entry

                   configurations


                  Glenair provides straight and angled backshells with a wide variety of strain reliefs for light,
               medium, general, and heavy duty applications where environmental protection of cable-to-con-
               nector terminations is not required.


               Assembly Instructions

               The following suggested procedure serves as a guide for  d. Trim cable jacket at a point 1/2 inch toward connector
               proper assembly and installation of Glenair Non-Environ-  from mark made in step (b) above.
               mental Backshells.  It is recommended that trial samples
               of appropriate cables or wire bundles be used to deter-  e. Prepare and terminate cable conductors in accordance
               mine proper trim dimensions of the individual conductors  with established practices.
               and cable jackets, if applicable.
                                                                 f.  Assemble backshell (1) to connector and tighten se-
               a. Temporarily assemble backshell (1) to connector.   curely.
               b. If cable is jacketed, insert cable into backshell (1) and  g. Assemble strain relief (2) to backshell and tighten se-
                  bottom against connector.  Hold cable in position and  curely.  Tighten strain relief saddles securely on cable
                  mark cable jacket at rear end of backshell.        or harness.
                                                                 NOTE:  As with any electrical connector assembly procedure,
               c. Remove backshell from connector and place on cable  be sure to use the proper tools.  For convenient, reliable as-
                  with strain relief (2).                        sembly of the connectors and backshells, it is suggested that
                                                                 Glenair's connector holding tools, strap wrenches and con-
                                                                 nector pliers be used.




               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                        Series 36 - Page 1                E-Mail: sales@glenair.com
