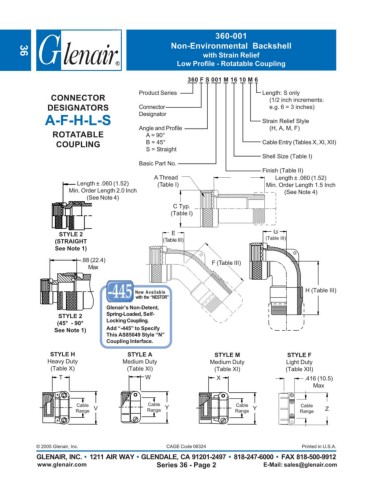

360-001
                                                        Non-Environmental Backshell
                                                                  with Strain Relief
       36
                                                          Low Profile - Rotatable Coupling

                                                             360 F S 001 M 16 10 M 6

                                              Product Series                          Length: S only
                 CONNECTOR                                                              (1/2 inch increments:
                DESIGNATORS                   Connector                                 e.g. 6 = 3 inches)
               A-F-H-L-S                      Designator                              Strain Relief Style
                                              Angle and Profile                         (H, A, M, F)
                  ROTATABLE                     A = 90°
                   COUPLING                     B = 45°                               Cable Entry (Tables X, XI, XII)
                                                S = Straight
                                                                                      Shell Size (Table I)
                                              Basic Part No.
                                                                                      Finish (Table II)
                                                   A Thread                               Length ± .060 (1.52)
                          Length ± .060 (1.52)      (Table I)                          Min. Order Length 1.5 Inch
                       Min. Order Length 2.0 Inch                                            (See Note 4)
                             (See Note 4)
                                                         C Typ.
                                                        (Table I)



                    STYLE 2                             E                                G
                   (STRAIGHT                         (Table III)                       (Table III)
                   See Note 1)

                           .88 (22.4)                                F (Table III)
                             Max



                                             Now  Available                                        H (Table III)
                                             with the “NESTOR”
                                   Glenair’s Non-Detent,
                    STYLE 2        Spring-Loaded, Self-
                   (45°  - 90°     Locking Coupling.
                  See Note 1)      Add “-445” to Specify
                                   This AS85049 Style “N”
                                   Coupling Interface.

                 STYLE H                  STYLE A                     STYLE M                 STYLE F
                Heavy Duty              Medium Duty                  Medium Duty             Light Duty
                 (Table X)                (Table XI)                  (Table XI)             (Table XII)
                    T                           W                      X                           .416 (10.5)
                                                                                                      Max


                          Cable  V               Cable  Y                    Cable  Y             Cable
                         Range                  Range                        Range                Range   Z






             © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                       Series 36 - Page 2                 E-Mail: sales@glenair.com
