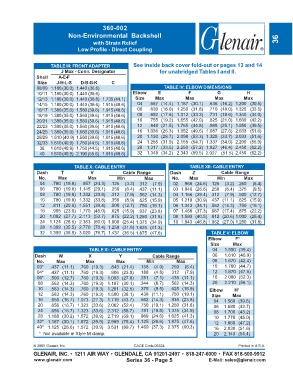

Page 103 - Circular Connector Backshells and Accessories

360-002
Non-Environmental Backshell
with Strain Relief 36
Low Profile - Direct Coupling

TABLE III: FRONT ADAPTER See inside back cover fold-out or pages 13 and 14
J Max - Conn. Designator for unabridged Tables I and II.
Shell A-E-F
Size J-H-L-S D-B-G-K C
08/09 1.180 (30.0) 1.440 (36.6) TABLE IV: ELBOW DIMENSIONS
10/11 1.180 (30.0) 1.440 (36.6) Elbow E F G H
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) Size Max Max Max Max
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 04 .567 (14.4) 1.187 (30.1) .636 (16.2) 1.200 (30.5)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 06 .630 (16.0) 1.250 (31.8) .710 (18.0) 1.320 (33.5)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 08 .692 (17.6) 1.312 (33.3) .731 (18.6) 1.340 (34.0)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 10 .755 (19.2) 1.655 (42.0) .825 (21.0) 1.660 (42.2)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .848 (21.5) 1.765 (44.8) .988 (25.1) 1.950 (49.5)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 1.036 (26.3) 1.952 (49.6) 1.087 (27.6) 2.033 (51.6)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 20 1.130 (28.7) 2.098 (53.3) 1.325 (33.7) 2.033 (51.6)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 24 1.255 (31.9) 2.155 (54.7) 1.337 (34.0) 2.200 (55.9)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 28 1.317 (33.5) 2.250 (57.2) 1.827 (46.4) 2.450 (62.2)
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) 32 1.348 (34.2) 2.343 (59.5) 2.027 (51.5) 2.450 (62.2)

TABLE X: CABLE ENTRY TABLE XII: CABLE ENTRY
Dash T V Cable Range Dash Z Cable Range
No. Max Max Min Max No. Max Min Max
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) 02 .968 (24.6) .125 (3.2) .250 (6.4)
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) 03 1.046 (26.6) .250 (6.4) .375 (9.5)
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) 04 1.156 (29.4) .312 (7.9) .500 (12.7)
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) 05 1.218 (30.9) .437 (11.1) .625 (15.9)
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) 06 1.343 (34.1) .562 (14.3) .750 (19.1)
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) 07 1.468 (37.3) .687 (17.4) .875 (22.2)
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) 08 1.593 (40.5) .812 (20.6) 1.000 (25.4)
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) 10 1.843 (46.8) 1.062 (27.0) 1.250 (31.8)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) TABLE V: ELBOW
Elbow F 1
Size Max
TABLE XI: CABLE ENTRY 04 1.550 (39.4)
Dash W X Y Cable Range 06 1.610 (40.9)
No. Max Max Max Min Max 08 1.670 (42.4)
03* .437 (11.1) .760 (19.3) .843 (21.4) .156 (4.0) .250 (6.4) 10 1.760 (44.7)
04* .437 (11.1) .760 (19.3) .906 (23.0) .188 (4.8) .312 (7.9) 12 1.870 (47.5)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .281 (7.1) .438 (11.1) 16 2.060 (52.3)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) .344 (8.7) .562 (14.3) 20 2.210 (56.1)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) .375 (9.5) .625 (15.9) Elbow H 1
12 .563 (14.3) .760 (19.3) 1.500 (38.1) .438 (11.1) .750 (19.1) Size Max
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) .562 (14.3) .938 (23.8) 04 1.560 (39.6)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) .750 (19.1) 1.250 (31.8) 06 1.680 (42.7)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) .781 (19.8) 1.375 (34.9) 08 1.700 (43.2)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) .969 (24.6) 1.625 (41.3) 10 1.770 (45.0)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 1.125 (28.6) 1.875 (47.6) 12 1.860 (47.2)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 1.469 (37.3) 2.375 (60.3) 16 2.030 (51.6)
* Not available in Style M clamp. 20 2.140 (54.4)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 36 - Page 5 E-Mail: sales@glenair.com
