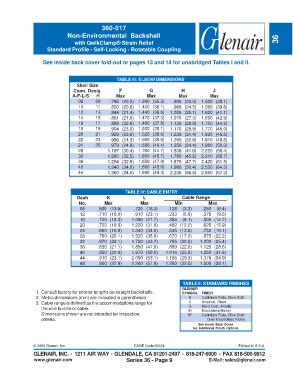

Page 107 - Circular Connector Backshells and Accessories
P. 107
360-017
Non-Environmental Backshell
with QwikClamp® Strain Relief 36
Standard Profile - Self-Locking - Rotatable Coupling
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. F G H J
A-F-L-S H Max Max Max Max
08 09 .795 (20.2) 1.390 (35.3) .906 (23.0) 1.500 (38.1)
10 11 .820 (20.8) 1.420 (36.1) .966 (24.5) 1.560 (39.6)
12 13 .844 (21.4) 1.440 (36.6) 1.026 (26.1) 1.620 (41.1)
14 15 .861 (21.9) 1.470 (37.3) 1.076 (27.3) 1.690 (42.9)
16 17 .888 (22.6) 1.490 (37.8) 1.136 (28.9) 1.750 (44.5)
18 19 .904 (23.0) 1.500 (38.1) 1.176 (29.9) 1.770 (45.0)
20 21 .929 (23.6) 1.520 (38.6) 1.236 (31.4) 1.830 (46.5)
22 23 .956 (24.3) 1.560 (39.6) 1.296 (32.9) 1.910 (48.5)
24 25 .979 (24.9) 1.590 (40.4) 1.356 (34.4) 1.980 (50.3)
28 1.197 (30.4) 1.760 (44.7) 1.636 (41.6) 2.220 (56.4)
32 1.280 (32.5) 1.800 (45.7) 1.780 (45.2) 2.310 (58.7)
36 1.294 (32.9) 1.850 (47.0) 1.876 (47.7) 2.420 (61.5)
40 1.340 (34.0) 1.890 (48.0) 1.986 (50.4) 2.530 (64.3)
44 1.360 (34.5) 1.940 (49.3) 2.235 (56.8) 2.650 (67.3)
TABLE IV: CABLE ENTRY
Dash K L Cable Range
No. Max Max Min Max
08 .530 (13.5) .720 (18.3) .128 (3.3) .250 (6.4)
12 .710 (18.0) .910 (23.1) .233 (5.9) .375 (9.5)
16 .720 (18.3) 1.090 (27.7) .358 (9.1) .500 (12.7)
20 .720 (18.3) 1.220 (31.0) .482 (12.2) .625 (15.9)
24 .660 (16.8) 1.340 (34.0) .545 (13.8) .750 (19.1)
28 .790 (20.1) 1.530 (38.9) .670 (17.0) .875 (22.2)
32 .870 (22.1) 1.720 (43.7) .795 (20.2) 1.000 (25.4)
36 .830 (21.1) 1.850 (47.0) .889 (22.6) 1.125 (28.6)
40 .820 (20.8) 1.970 (50.0) 1.014 (25.8) 1.250 (31.8)
44 .910 (23.1) 2.090 (53.1) 1.155 (29.3) 1.375 (34.9)
48 .900 (22.9) 2.280 (57.9) 1.280 (32.5) 1.500 (38.1)
TABLE II: STANDARD FINISHES
GLENAIR
1. Consult factory for shorter lengths on straight backshells. SYMBOL FINISH
2. Metric dimensions (mm) are indicated in parentheses. B Cadmium Plate, Olive Drab
3. Cable range is defined as the accommodations range for C Anodize, Black
the wire bundle or cable. G Hard Coat, Anodic
Electroless Nickel
M
Dimensions shown are not intended for inspection NF Cadmium Plate, Olive Drab
criteria. Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 36 - Page 9 E-Mail: sales@glenair.com
